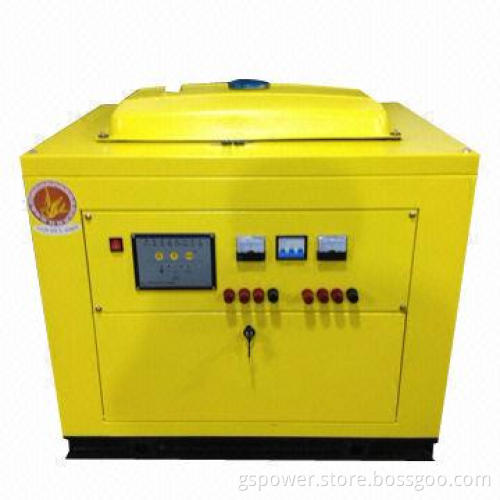

Natural Gas Generator Set with High Efficiency and Compact Structure

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Main gas system components (mixer, speed governor, ignitionmodule and more) all are most advanced imported ones, to makes suremore stable and reliable running

ATS (automatic transfer switch), grid-connection or parallelrunning is available

Heat recovery system can be added to gas generator to makesCHP/co-generation unit

Long service lifespan: gas engine has lifespan of over severalyears if is properly operated and maintained

Low-operating cost: bio-gas has rich reserve with low-cost andhigh-rate of return

High-profit: low-operating and maintenance cost, able to outputelectricity and heat at same time

Equipped with famous brush-less alternators

Well performed control system, high-quality monitor instrument,with sound and light alarm devices, auto shutdown

Protection function: over-current, under-voltage, auto-regulatevoltage, reverse power

Monitor functions: speed, water temperature, lube-oiltemperature, lube-oil pressure, exhaust temperature

Gas consumption: <0.60m³/kW hour

Supply connection: 3-phases and 4 wires

Normal output: 1kW/1.25kVA

Reserve output: 1.1kW/1.38kVA

Engine: 170F

Fuel consumption (100% loading): 0.56kW/m³

Net weight: 46kg

Dimensions: (L)595x(W)455x(H)480mm

Rated voltage: 400/220V

Rated speed: 1500/1800rpm

Rated frequency: 50/60Hz

Rated power factor: 0.8 lagging

Exciting way: brushless and self-excitation

Starting mode: 24V DC electric starting system

Cooling mode: closed-circuit cooling system

Standards: CE and CSA

Warranty: 4000 hours or one year, whichever comes first

Packing: gas generator export standard
