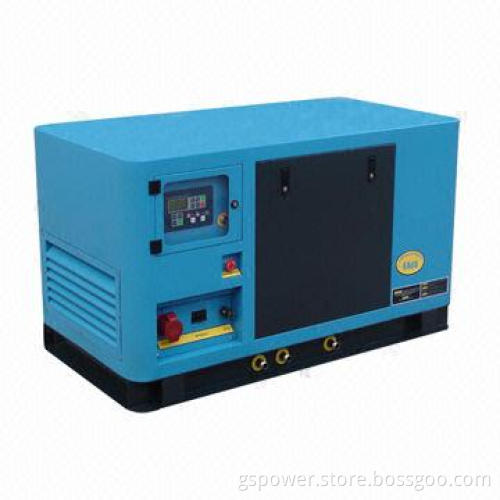

CHP Natural Gas Generator Set, Higher Energy Production Effectivity and Low Carbon

Get Latest Price

Payment Type:: FOB, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	FOB,T/T

Product Description

Co-generation: heat + electricity

Higher energy production effectivity (up to 80%)

Alternator possibility of hear and cooling production

Structure: open/sound-resistant

High-efficiency, low-carbon, -energy consumption, environmentalprotection and more

Rated power: from 1 to 800kW

Main gas system components (mixer, speed governor, ignitionmodule and more) all are the most advanced imported ones, to makessure more stable and reliable running

ATS (Automatic Transfer Switch), grid-connection or parallelrunning is available

Heat recovery system can be added to the gas generator to makesa CHP/co-generation unit

Long service life: gas engine has a life of over several yearsif it is properly operated and maintained

Low-operating cost: biogas has a rich reserve with low-cost anda high-rate of return

High-profit: low-operating and maintenance cost, able to outputelectricity and heat at the same time

Equipped with famous brush-less alternators (Leroy Somer,Stamford or Marathon and more)

Well performed control system, high-quality monitor instrument,with sound and light alarm devices, auto shutdown

Protection function: over-current, under-voltage, auto-regulatevoltage, reverse power

Monitor functions: speed, water temperature, lube-oiltemperature, lube-oil pressure, exhaust temperature

Gas consumption: less than 0.60m³/kWh

Supply connection: 3 phases, 4 wires

Rated voltage: 400/220V

Rated speed: 1,500/1,800rpm

Rated frequency: 50/60Hz

Rated power factor: 0.8 lagging

Exciting way: brush-less, self-excitation

Starting mode: 24V DC electric starting system

Cooling mode: closed-circuit cooling system

Standards: CE, CSA

Warranty: 4,000 hours or one year, whichever comes first

Packing: gas generator export standard package
