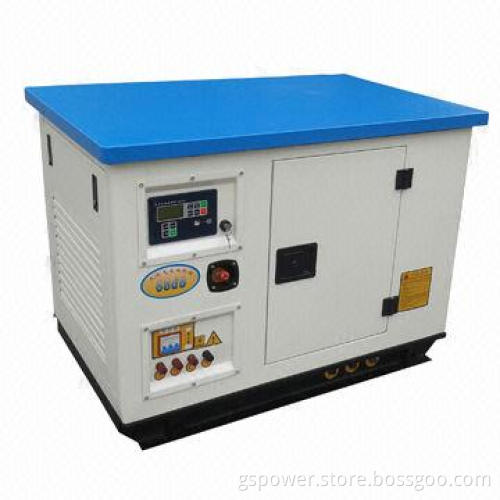

Gas Generator with 24DV, Measures 1,400 x 750 x 820mm

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Main gas system components (mixer, speed governor, ignitionmodule and more) all are the most advanced imported ones, to makessure more stable and reliable running

ATS (Automatic Transfer Switch), grid-connection or parallelrunning is available

Heat recovery system can be added to the gas generator to makesa CHP/co-generation unit

Long service life: gas engine has a life of over several yearsif it is properly operated and maintained

Low-operating cost: biogas has a rich reserve with low-cost anda high-rate of return

High-profit: low-operating and maintenance cost, able to outputelectricity and heat at the same time

Equipped with famous brush-less alternators

Well performed control system, high-quality monitor instrument,with sound and light alarm devices, auto shutdown

Protection function: over-current, under-voltage, auto-regulatevoltage, reverse power

Monitor functions: speed, water temperature, lube-oiltemperature, lube-oil pressure, exhaust temperature

Gas consumption: less than 0.60m³/kWh

Supply connection: 3 phases, 4 wires

Normal output: 16kW/20kVA

Reserve output: 20kW/25kVA

Engine:474

Fuel consumption 100% kw.m3/h: 4.2

Net weight: 420kg

Dimensions (L x W x H): 1,400 x 750 x 820mm

Rated voltage: 400/220V

Rated speed: 1,500/1,800rpm

Rated frequency: 50/60Hz

Rated power factor: 0.8 lagging

Exciting way: brush-less, self-excitation

Starting mode: 24V DC electric starting system

Cooling mode: closed-circuit cooling system

Standards: CE, CSA

Warranty: 4,000 hours or one year, whichever comes first

Packing: gas generator export standard package
