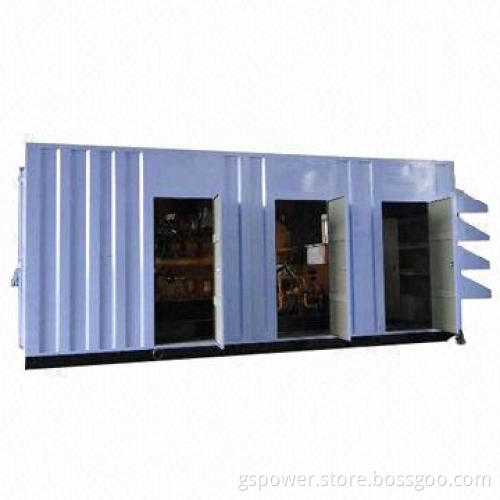

500kW Natural Gas Generator Set with Cummins Engine, Most Reliable Control Panel

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Features:

Low cost, high efficiency, compact structure, eco-friendly

Heavy load durable, four-stroke, water cooled engine

Excellent transient response

Parameters:

Prime power: 500kW/625kVA

Standby power: 550kW/187.5kVA

Advertised voltage: 380/220 and 400/230V

Frequency: 50Hz

Speed: 1,500rpm or 60Hz, 1,800rpm

Power factor: 0.8 (lagging)

Protection standard: IP210 to IP23

Model of connection: 3 phase/4 lines

Insulation grade: H

Frequency drop: d0.5%

Transient state frequency deviation: (advertised power) +10 to-7%

Frequency recovery time: d3s

Voltage recovery time: d4s

Waveform distortion: d5%

Engine:

Cummins: KTAA19

Heavy load durable, four-stroke, water cooled engine

Excellent transient response

24V DC safe isolate valve

Dual spin-on paper element fuel filter

Gen-sets equipped with dual flexible fuel union pipe

Four valves per cylinder, stainless steel crankshaft, bolt,cast iron steel, replaceable humid cylinder liner

Alternator:

Engga EG355L-500N (standard)/Stamford HCI544FS (option)

Brushless, four-pole revolving field, single bearing anddrop-proof screen protection

Class H insulation

IP21-IP23 protection standard

Dynamically balanced rotor to BS 5625 grade 12.5

High-quality lubrication sealed for long lifespan bearing

Automatic voltage regulator (AVR)

Control system:

Completed gen-set parameter display, perfect protection andcontrol function

All English display, friendly operation interface

Excellent anti-jamming function, adapt to extremecondition

Independent overload protection

Special on-off pre-warning system

Unique sensors protection, adapt to all sensors

Emergency
