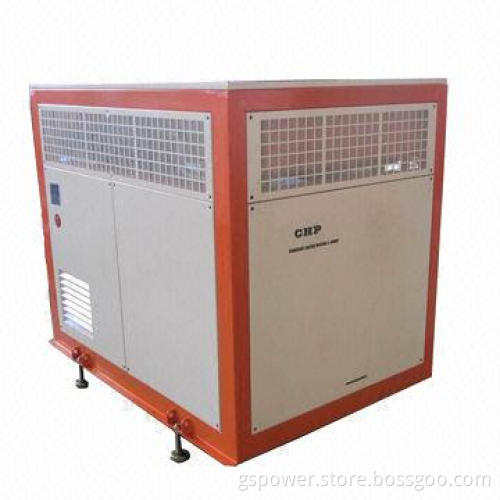

CHP Con-generation Home Generator with Gas Fuel and Prime Power of 20kW

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Engine:

Base engine: 4B3.9
Prime power: 20kW
Number of cylinders: 4
Standby power: 22kW
Air intake way: turbo-charged
Torque: 465Nm
Bore x stroke: 102 x 120mm
Low idle: 750 ± 50rpm
Displacement: 3.9L
Piston seed: 6m/s
Compression ratio: 16.5:1
Engine coolant flow: 2L/s
Engine speed: 1,500rpm
Exhaust flow: 435m³/hr
Engine weight, dry: 330kg
Exhaust temperature: 675°C ±25

Alternator:

Model: Engga, EG160M-20N
Excitation: brushless
Frequency and speed: 50Hz/1,500rpm
Protection: IP23
Voltage: 400V
Insulation: H
Prime power: 20kW
Maximum over speed: 2,160rpm/min
Power efficiency: 88.40%
Voltage regulation: ±1%
Stator winding: 2/3
Rated power factor: 0.8
Control system: DSE, Smartgen, Harsen HK

CHP technical data:

Gas fuel-CHP20VB
Emission standard (NO x): Euro II
Electrical power: 20KW
Thermal power: 52kW
Electrical efficiency: 35 to 40%
Thermal efficiency: 50 to 55%
Overall efficiency: 85 to 95%
Natural gas consumption: d0.3m³/kW.h
Engine oil consumption: d1.02g/kWh

Remark: it is soften hard water from outside

Dimensions and weights:

Open type:
- Size: 1,700 x 740 x 1,375mm
- Net weight: 850kg
Silent type:
- Size: 2,200 x 1,000 x 1,600mm
- Net weight: 1,580kg

Base engine: 4B3.9

Prime power: 20kW

Number of cylinders: 4

Standby power: 22kW

Air intake way: turbo-charged

Torque: 465Nm

Bore x stroke: 102 x 120mm

Low idle: 750 ± 50rpm

Displacement: 3.9L

Piston seed: 6m/s

Compression ratio: 16.5:1

Engine coolant flow: 2L/s

Engine speed: 1,500rpm

Exhaust flow: 435m³/hr

Engine weight, dry: 330kg

Exhaust temperature: 675°C ±25

Model: Engga, EG160M-20N

Excitation: brushless

Frequency and speed: 50Hz/1,500rpm

Protection: IP23

Voltage: 400V

Insulation: H

Prime power: 20kW

Maximum over speed: 2,160rpm/min

Power efficiency: 88.40%

Voltage regulation: ±1%

Stator winding: 2/3

Rated power factor: 0.8

Control system: DSE, Smartgen, Harsen HK

Gas fuel-CHP20VB

Emission standard (NO x): Euro II

Electrical power: 20KW

Thermal power: 52kW

Electrical efficiency: 35 to 40%

Thermal efficiency: 50 to 55%

Overall efficiency: 85 to 95%

Natural gas consumption: d0.3m³/kW.h

Engine oil consumption: d1.02g/kWh

Open type:

Size: 1,700 x 740 x 1,375mm
Net weight: 850kg

Silent type:

Size: 2,200 x 1,000 x 1,600mm
Net weight: 1,580kg

Size: 1,700 x 740 x 1,375mm

Net weight: 850kg

Size: 2,200 x 1,000 x 1,600mm

Net weight: 1,580kg
