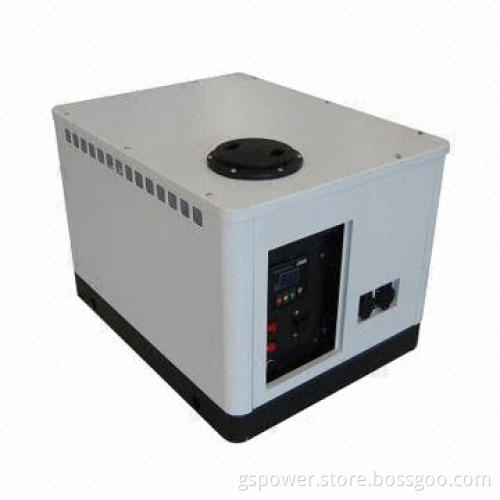

Gas Generator with High Efficiency and Compact Structure

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Main gas system components (mixer, speed governor, ignitionmodule) all most advanced imported ones, to makes sure more stableand reliable running

ATS (automatic transfer switch), grid-connection or parallelrunning available

Heat recovery system can be added to gas generator to makesCHP/co-generation unit

Long service life: gas engine has life of over several years ifproperly operated and maintained

Low-operating cost: biogas has rich reserve with low-cost andhigh-rate of return

High-profit: low-operating and maintenance cost, able to outputelectricity and heat same time

Equipped with famous brush-less alternators

Well performed control system, monitor instrument, with soundand light alarm devices, auto shutdown

Protection function: over-current, under-voltage, auto-regulatevoltage, reverse power

Monitor functions: speed, water temperature, lube-oiltemperature, lube-oil pressure, exhaust temperature

Gas consumption: less than 0.60m³/kWh

Supply connection: 3 phases, 4 wires

Normal output: 12kW/15kVA

Reserve output: 15kW/18.75kVA

Engine: 465Q

Fuel consumption: 3.8L

Net weight: 330kg

Dimensions: (L) 1100 x (W) 750 x (H) 820mm

Rated voltage: 400/220V

Rated speed: 1500/1800rpm

Rated frequency: 50/60Hz

Rated power factor: 0.8 lagging

Exciting way: brush-less and self-excitation

Starting mode: 24V DC electric starting system

Cooling mode: closed-circuit cooling system

Standards: CE and CSA

Warranty: 4000 hours or 1 year, whichever comes first

Packing: gas generator export standard
