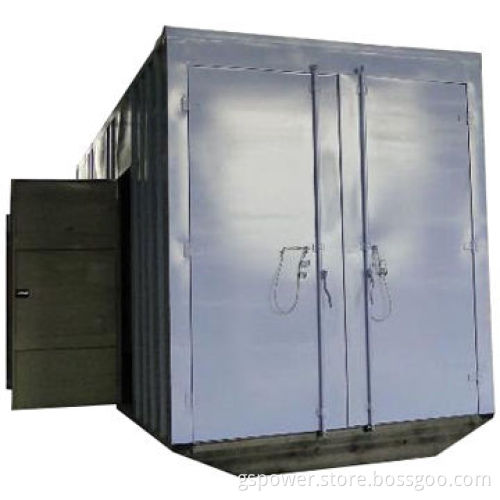

300kW/375kVA Natural Gas Generator Set with Cummins Engine and Canopy
  • 300kW/375kVA Natural Gas Generator Set with Cummins Engine and Canopy
300kW/375kVA Natural Gas Generator Set with Cummins Engine and Canopy

300kW/375kVA Natural Gas Generator Set with Cummins Engine and Canopy

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • High efficiency, compact structure and eco-friendly
    • Heavy load durable, four-stroke and water cooled engine
    • Excellent transient response
  • Parameters:
    • Prime power: 300kW/375kVA
    • Standby power: 330kW/412.5kVA
    • Advertised voltage: 380/220 and 400/230V
    • Frequency: 50Hz
    • Speed: 1500rpm or 60Hz, 1800rpm
    • Power factor: 0.8 (lagging)
    • Protection standard: IP210 to IP23
    • Model of connection: 3 phase/4 lines
    • Insulation grade: H
    • Frequency drop: d0.5%
    • Transient state frequency deviation: (advertised power) +10 to-7%
    • Frequency recovery time: d3 seconds
    • Voltage recovery time: d4 seconds
    • Waveform distortion: d5%
  • Engine:
    • Cummins: NTAA855
    • Heavy load durable, four-stroke, water cooled engine
    • Excellent transient response
    • 24V DC safe isolate valve
    • Dual spin-on paper element fuel filter
    • Gen-sets equipped with dual flexible fuel union pipe
    • Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel and replaceable humid cylinder liner
  • Alternator:
    • Engga/EG315M-300N (standard)/Stamford HCI444FS (option)
    • Brushless, four-pole revolving field, single bearing and drop-proof screen protection
    • Class insulation: H
    • Protection standard: IP21-IP23
    • Dynamically balanced rotor to BS 5625 grade 12.5
    • Lubrication sealed for long lifespan bearing
    • Automatic voltage regulator (AVR)
  • Control system:
    • Completed gen-set parameter display, perfect protection and control function
    • All English display, friendly operation interface
    • Excellent anti-jamming function, adapt to extreme condition
    • Independent overload protection
    • Special on-off pre-warning system
    • Unique sensors protection, adapt to all sensors
    • Emergency
  • High efficiency, compact structure and eco-friendly
  • Heavy load durable, four-stroke and water cooled engine
  • Excellent transient response
  • Prime power: 300kW/375kVA
  • Standby power: 330kW/412.5kVA
  • Advertised voltage: 380/220 and 400/230V
  • Frequency: 50Hz
  • Speed: 1500rpm or 60Hz, 1800rpm
  • Power factor: 0.8 (lagging)
  • Protection standard: IP210 to IP23
  • Model of connection: 3 phase/4 lines
  • Insulation grade: H
  • Frequency drop: d0.5%
  • Transient state frequency deviation: (advertised power) +10 to-7%
  • Frequency recovery time: d3 seconds
  • Voltage recovery time: d4 seconds
  • Waveform distortion: d5%
  • Cummins: NTAA855
  • Heavy load durable, four-stroke, water cooled engine
  • Excellent transient response
  • 24V DC safe isolate valve
  • Dual spin-on paper element fuel filter
  • Gen-sets equipped with dual flexible fuel union pipe
  • Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel and replaceable humid cylinder liner
  • Engga/EG315M-300N (standard)/Stamford HCI444FS (option)
  • Brushless, four-pole revolving field, single bearing and drop-proof screen protection
  • Class insulation: H
  • Protection standard: IP21-IP23
  • Dynamically balanced rotor to BS 5625 grade 12.5
  • Lubrication sealed for long lifespan bearing
  • Automatic voltage regulator (AVR)
  • Completed gen-set parameter display, perfect protection and control function
  • All English display, friendly operation interface
  • Excellent anti-jamming function, adapt to extreme condition
  • Independent overload protection
  • Special on-off pre-warning system
  • Unique sensors protection, adapt to all sensors
  • Emergency
