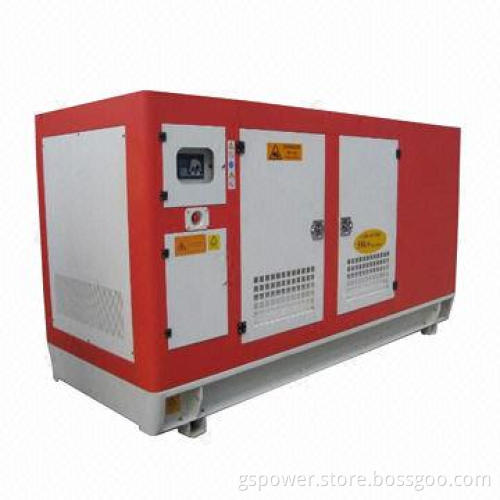

50kW CHP Gas Generator Set with Cummins Engine and Marathon/Stamford Alternator
  • 50kW CHP Gas Generator Set with Cummins Engine and Marathon/Stamford Alternator
50kW CHP Gas Generator Set with Cummins Engine and Marathon/Stamford Alternator

50kW CHP Gas Generator Set with Cummins Engine and Marathon/Stamford Alternator

Get Latest Price
Payment Type:
FOB, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: FOB, T/T
Product Description
Product Description
  • Engine:
    • Base: 6B5.9
    • Prime power: 50kW
    • Number of cylinder: 6L
    • Standby power: 55kW
    • Air intake way: turbo-charged
    • Torque: 465Nm
    • Bore x stroke: 102 x 120mm
    • Low idle: 750rpm ±50%
    • Displacement: 5.9L
    • Piston speed: 6rpm
    • Compression ratio: 16.5:1
    • Engine coolant flow: 2L/S
    • Engine speed: 1,500rpm
    • Exhaust flow: 435m3/h
    • Dry weight: 440kg
    • Exhaust temperature: 675 ±25°C
  • Alternator:
    • Model: EG225S-50N
    • Excitation: brushless
    • Frequency and speed: 50Hz/1500rpm
    • Protection: IP23
    • Voltage: 400V
    • Insulation: H
    • Prime power: 50kW
    • Maximum over speed: 2160rpm
    • Power efficiency: 88.40%
    • Voltage regulation: ±1%
    • Stator winding: 2/3
    • Rated power factor: 0.8
    • Control system: DSE, Smartgen and Harsen HK
  • CHP technical data:
    • Emission standard (NO x): Euro II
    • Electrical power: 50kW
    • Thermal power: 132kW
    • Electrical efficiency: 36.2 to 40%
    • Thermal efficiency: 50 to 55%
    • Overall efficiency: 86.2 to 95%
    • Natural gas consumption: ≤0.3m3/kwh
    • Engine oil consumption: ≤1.02g/kWh
    • Remark: soften hard water from outside
    • Dimensions: 2,100 x 800 x 1,375mm
  • Base: 6B5.9
  • Prime power: 50kW
  • Number of cylinder: 6L
  • Standby power: 55kW
  • Air intake way: turbo-charged
  • Torque: 465Nm
  • Bore x stroke: 102 x 120mm
  • Low idle: 750rpm ±50%
  • Displacement: 5.9L
  • Piston speed: 6rpm
  • Compression ratio: 16.5:1
  • Engine coolant flow: 2L/S
  • Engine speed: 1,500rpm
  • Exhaust flow: 435m3/h
  • Dry weight: 440kg
  • Exhaust temperature: 675 ±25°C
  • Model: EG225S-50N
  • Excitation: brushless
  • Frequency and speed: 50Hz/1500rpm
  • Protection: IP23
  • Voltage: 400V
  • Insulation: H
  • Prime power: 50kW
  • Maximum over speed: 2160rpm
  • Power efficiency: 88.40%
  • Voltage regulation: ±1%
  • Stator winding: 2/3
  • Rated power factor: 0.8
  • Control system: DSE, Smartgen and Harsen HK
  • Emission standard (NO x): Euro II
  • Electrical power: 50kW
  • Thermal power: 132kW
  • Electrical efficiency: 36.2 to 40%
  • Thermal efficiency: 50 to 55%
  • Overall efficiency: 86.2 to 95%
  • Natural gas consumption: ≤0.3m3/kwh
  • Engine oil consumption: ≤1.02g/kWh
  • Remark: soften hard water from outside
  • Dimensions: 2,100 x 800 x 1,375mm
