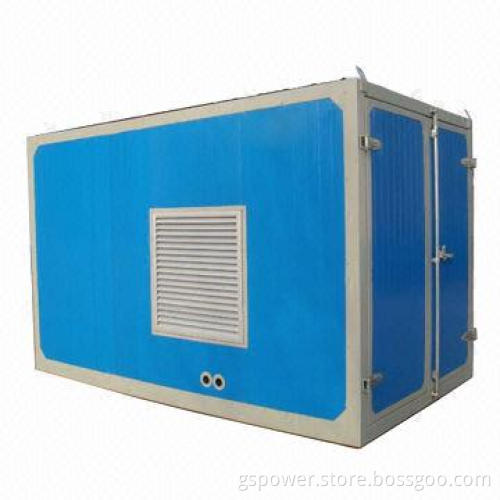

CHP, Combined Heating and Power Gas Genset with Cummins Engine and Most Popular Alternaor

Get Latest Price

Payment Type:: FOB, T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	FOB,T/T

Product Description

Engine:

Base engine: 6B5.9

Prime power: 40kW

Number of cylinders: 6

Standby power: 44kW

Air intake way: turbo-charged

Torque: 465N·m

Bore x stroke: 102 x 120mm

Low idle: 750 ± 50rpm

Displacement: 5.9L

Piston seed: 6m/s

Compression ratio: 16.5:1

Engine coolant flow: 2L/S

Engine speed: 1,500rpm

Exhaust flow: 435m³/h

Engine weight, dry: 440kg

Exhaust temperature: 675±25°C

Alternator:

Model: Engga, EG225S-40N

Excitation: brushless

Frequency and speed: 50Hz/1,500rpm

Protection: IP23

Voltage: 400V

Insulation: H

Prime power: 40kW

Max over speed: 2,160rpm/min

Power efficiency: 88.40%

Voltage regulation: ±1%

Stator winding: 2/3

Rated power factor: 0.8

Control system: DSE, Smartgen, Harsen HK

CHP technical data: gas fuel-CHP40VB

Emission standard (NO x) mg/m³: Euro II

Electrical power: 40kW

Thermal power: 105kW

Electrical efficiency: 35 to 40%

Thermal efficiency: 50 to 55%

Overall efficiency: 85 to 95%

Natural gas consumption: d0.3m³/kw"h

Engine oil consumption: d1.02g/kWh

Remark: it is soften hard water from outside

Dimensions:

2,100 x 800 x 1,375mm

2,500 x 1,000 x 1,600mm

Net weight:

900kg (open type)

1,600 (silent type)
