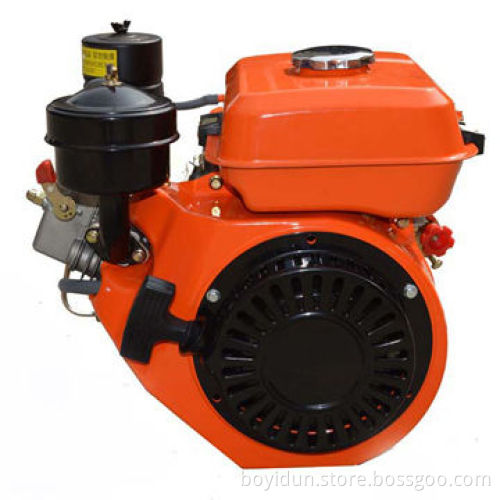

Diesel Engine 4-stroke, Single Cylinder with Air-cooled

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Rated output (HP/rpm) 10.3HP/3000, 11.2HP/3600

Rated output (KW/rpm) 7.5KW/3000, 8.2KW/3600

Engine type single-cylinder, vertical, four-stroke, air-cooled, direct injection

Cylinder diameter*stroke (mm): 88X75

Piston displacement (L): 0.456

Compression ratio: 19

Max. no-load speed (r/min): 108% of rated rotary speed

Min. no-load speed (r/min): 1300

Lubrication system: Pressure splash complex type

Engine starting system: Recoil starter or electric starter

Output terminal rotation: Anticlockwise

Fuel oil model: Summer: 0#, and winter: -10#

Fuel tank capacity (L) 5.5

Fuel consumption rate (g/kW.h): 290/3,000 and 295/3600

Oil consumption rate (g/kW.h): 4.08

Oil grade: CD grade or SAE10W-30, 15W-40

Valve clearance (cold state) mm: 0.10-0.15

Lube oil capacity (L): 1.65

Starting motor (V, kW): 12V 0.8kW

Charging generator: 12V 3A

Battery capacity: Above 12V-36Ah
