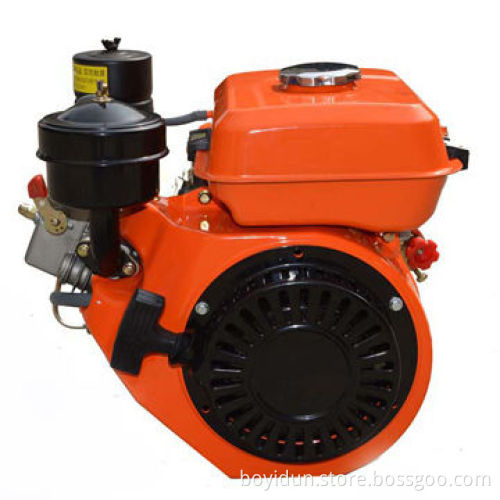

Small diesel engine for sale

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Rated output: 10.3/3000, 11.2HP/3,600rpm

Rated output: 7.5/3000, 8.2kW/3,600rpm

Engine types: single-cylinder, vertical, four-stroke, air-cooled and direct injection

Cylinder: (diameter) 88 x (stroke) 75mm

Piston displacement: 0.456L

Compression ratio: 19

Maximum no-load speed: 108% of rated rotary speed

Minimum no-load speed: 1,300rpm

Lubrication system: pressure splash complex type

Engine starting system: recoil starter or electric starter

Output terminal rotation: anti-clock wise

Fuel oil model:

Fuel tank capacity (L) 5.5

Fuel consumption rate: 290/3000 and 295g/3600kWh

Oil consumption rate: 4.08g/kWh

Oil grade CD grade or SAE10W-30, 15W-40

Valve clearance (cold state): 0.10-0.15mm

Lube oil capacity: 1.65L

Starting motor: 12V, 0.8kW

Charging generator: 12V, 3A

Battery capacity: above 12V-36Ah

Summer: 0#

Winter: -10#
