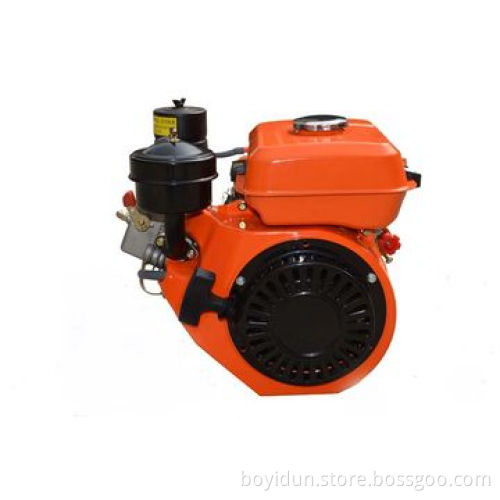

Diesel Engine with 3,000/3,600rpm Engine Speed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Rated output (HP/rpm) 10.3HP/3000, 11.2HP/3600

Rated output (KW/rpm) 7.5KW/3000, 8.2KW/3600

Engine type Single-cylinder, vertical, four-stroke, air-cooled, direct injection

Cylinder: Diameter*stroke (mm) 88X75

Piston displacement (L): 0.456

Compression ratio: 19

Max. no-load speed (r/min) 108% of Rated rotary speed

Min. no-load speed (r/min) 1,300

Lubrication system pressure splash complex Type

Engine starting system Recoil starter or Electric starter

Output terminal rotation AnticlockWise

Fuel oil model summer:0#, winter:-10#

Fuel tank capacity (L): 5.5

Fuel consumption rate (g/kW.h): 290/3000 295/3600

Oil consumption rate (g/kW.h): 4.08

Oil grade CD grade or SAE10W-30,15W-40

Valve clearance(cold state) mm 0.10-0.15

Lube oil capacity (L) 1.65

Starting motor (V,kW) 12V 0.8kW

Charging generator (V,A) 12V 3A

Battery capacity (V,AH) above: 12V-36AH
