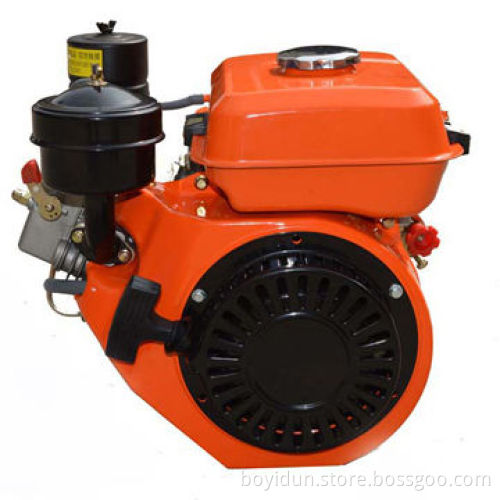

Single Cylinder/Vertical Four-cycle Air-cooled Diesel Engine with 418ml Displacement

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Rated output (HP/rpm) 10.3HP/3000, 11.2HP/3600

Rated output (KW/rpm) 7.5KW/3000, 8.2KW/3600

Engine type: Single-cylinder, vertical, four-stroke, air-cooled, direct injection

Cylinder: Diameter*stroke (mm) 88X75

Piston displacement (L): 0.456

Compression ratio: 19

Max. no-load speed (r/min): 108% of rated rotary speed

Min. no-load speed (r/min): 1,300

Lubrication system: Pressure splash complex type

Engine starting system: Recoil starter or electric starter

Output terminal rotation: Anticlock-wise

Fuel oil model: summer: 0# and winter: -10#

Fuel tank capacity (L): 5.5

Fuel consumption rate (g/kW.h): 290/3,000 and 295/3,600

Oil consumption rate (g/kW.h): 4.08

Oil grade: CD grade or SAE10W-30,15W-40

Valve clearance (cold state) mm: 0.10-0.15

Lube oil capacity (L): 1.65

Starting motor (V, kW): 12V 0.8kW

Charging generator (V,A) 12V 3A

Battery capacity (V, AH): Above 12V-36Ah
