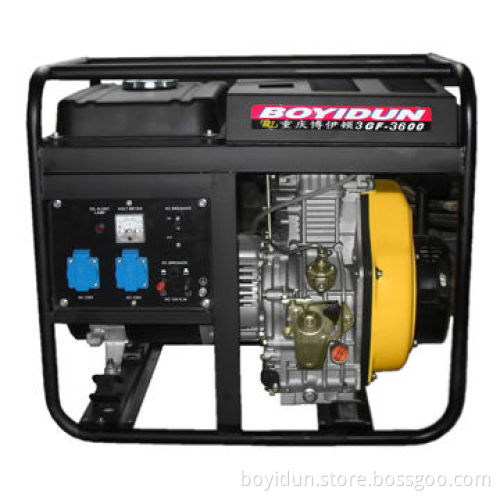

Small Diesel Generator, 3, 5kw

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Suitable for:

Business activities: shops, restaurants, workshops, hotels, offices, farms
Social activities: education, training and culture school or institution, medical centre, clinique, organization and government department, religion centre, entertainment and sport centre
Residential: Villa area, residence community, activity outdoors

Max. output power is 5.0kVA

Low noise design, 82 dB(A) at 4mts

Lightweight and compact

A full tank of fuel can last for 6.5 constant hours

"E" indicate electric starter (optional)

Optional: Battery, wheels, handles and supporting leg

Specifications:

Rated frequency (Hz): 50 60
Rated output(kVA): 3.5 4.0
Max. ouput (kVA): 3.0 3.5
Rated voltages: 220, 230, 240, 220/110, 240/120V (for option)
Rated current (A): 39.2/19.6 41.7/20.8
Rated speed (r/min ): 3000 3600
Phase No.: Single phase/Three phase
Power factor (cosφ): 1
Insulation grade: B
Pole number: 2
Excitation mode: Self-excitation and constant voltage(AVR)
Panel type: General
Receptacle (mm): Two receptacles
Connection pole: Without
DC12V output: Connection pole output
Overall dimension: L×W×H(mm) 655×480×530
Dry weight (Kg) C: 65 E:70
Working assorting weight(Kg): C:78, E:83
Noise Level (7M) db(A) 77
Structure type: Open frame
Engine Model: 178FA
Engine type: single-cylinder, vertical, four-storke, direct injection
Cylinder No: bore×stroke (mm): 1-78×64
Displacement: 296
Rated power[kW(Hp)/(r/min)]: 3.0/3000 3.5/3600
Compression ratio: 20:01
Rated rotation speed: 3000 3600
lgnition systems:
- Cooling: Air cooled
- Lubrication: pressure splashed
- Starting: C:recoil E:electric starter
Fuel type: 0#(summer)-10#(winter)-20#(chillness)disel
Lube oil Brand CDgrade or SAE10W-30,15W-40
Capacity of cooling: Water(L) without
Lube capacity (L): 1.1
Starting motor capacity (V-kW) 12V 0.8kW
Charging generator capacity (V-A) 12V 3A
Battery capacity(V-Ah) 12V 36Ah
Fuel consumption (g/kW·h) 275.1 281.5
Fuel tank capacity (L) 13.5
Continuous running time (hr) 11

The advantage you choose us:

Manufacturing expenrience
Professional engineers and test equipments to ensure the quality of each machine
OEM service is available
High quality control system
Convenient use
DHV OHV, operation Reliable,
Low noise and small vibration
After-sales services

Business activities: shops, restaurants, workshops, hotels, offices, farms

Social activities: education, training and culture school or institution, medical centre, clinique, organization and government department, religion centre, entertainment and sport centre

Residential: Villa area, residence community, activity outdoors

Rated frequency (Hz): 50 60

Rated output(kVA): 3.5 4.0

Max. ouput (kVA): 3.0 3.5

Rated voltages: 220, 230, 240, 220/110, 240/120V (for option)

Rated current (A): 39.2/19.6 41.7/20.8

Rated speed (r/min ): 3000 3600

Phase No.: Single phase/Three phase

Power factor (cosφ): 1

Insulation grade: B

Pole number: 2

Excitation mode: Self-excitation and constant voltage(AVR)

Panel type: General

Receptacle (mm): Two receptacles

Connection pole: Without

DC12V output: Connection pole output

Overall dimension: L×W×H(mm) 655×480×530

Dry weight (Kg) C: 65 E:70

Working assorting weight(Kg): C:78, E:83

Noise Level (7M) db(A) 77

Structure type: Open frame

Engine Model: 178FA

Engine type: single-cylinder, vertical, four-storke, direct injection

Cylinder No: bore×stroke (mm): 1-78×64

Displacement: 296

Rated power[kW(Hp)/(r/min)]: 3.0/3000 3.5/3600

Compression ratio: 20:01

Rated rotation speed: 3000 3600

lgnition systems:

Cooling: Air cooled
Lubrication: pressure splashed
Starting: C:recoil E:electric starter

Fuel type: 0#(summer)-10#(winter)-20#(chillness)disel

Lube oil Brand CDgrade or SAE10W-30,15W-40

Capacity of cooling: Water(L) without

Lube capacity (L): 1.1

Starting motor capacity (V-kW) 12V 0.8kW

Charging generator capacity (V-A) 12V 3A

Battery capacity(V-Ah) 12V 36Ah

Fuel consumption (g/kW·h) 275.1 281.5

Fuel tank capacity (L) 13.5

Continuous running time (hr) 11

Cooling: Air cooled

Lubrication: pressure splashed

Starting: C:recoil E:electric starter

Manufacturing expenrience

Professional engineers and test equipments to ensure the quality of each machine

OEM service is available

High quality control system

Convenient use

DHV OHV, operation Reliable,

Low noise and small vibration

After-sales services
