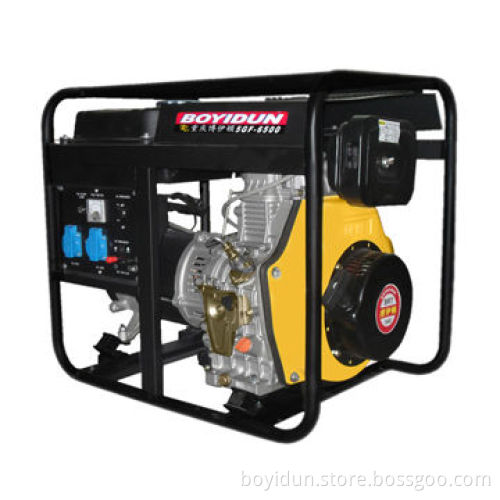

5kW small diesel generator for home use

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Suitable for:

Business activities: shops, restaurants, workshops, hotels, offices, farms
Social activities: education, training and culture school or institution, medical center, Clinique, organization and government department, religion center, entertainment and sport center
Residential: Villa area, residence community, activity outdoors

Features:

Max. output power is 5.0kVA
Low noise design, 82 dB(A) at 4mts
Lightweight and compact
A full tank of fuel can last for 6.5 constant hours
"E" indicate electric starter (Optional)
Optional: Battery, wheels, handles and supporting leg

Specifications:

Generator model WD-5000CE
Rated frequency (Hz) 50 60
Rated output(kVA) 4.5 5.0
Max. output (kVA) 5.0 5.5
Rated voltage (V) 220V,230V,240V,220/110V,240/120V (For option)
Rated current (A) 39.2/19.6 41.7/20.8
Rated speed (r/min ) 3000 3600
Phase NO. Single phase
Power factor (cosφ) 1
Insulation grade B
Pole number 2
Excitation mode self-excitation and constant voltage(AVR)
panel type general panel
Output voltage (V) 220/230/240/220/110V, 240/120V (option)
Receptacle (mm) two receptacles
Connection pole without
DC12V output connection pole output
Overall dimension: 720×492×655mm
Dry weight (Kg) C:95 E:100
Working assorting weight(Kg) C:110 E:115
Noise Level(7M) db(A) 77
Structure type open frame
Engine Model 178FA
Engine type single-cylinder, vertical, four-stroke, direct injection
Cylinder No, -bore × stroke (mm) 1-78×64
Displacement 296
Rated power[kW(Hp)/(r/min)] 5.0/3000 5.5/3600
Compression ratio 20:01
Rated rotation speeds: 3000/3600

Ignition system:

Cooling system air cooled
Lubrication system pressure splashed
Starting system C: Recoil E: Electric starter
Fuel type 0# (summer)-10# (winter)-20# (chillness) disel
Lube oil brand CD grade or SAE10W-30,15W-40
Capacity of cooling water (L) without
Lube capacity (L) 1.1
Starting motor capacity (V-kW) 12V 0.8kW
Charging generator capacity (V-A) 12V 3A
Battery capacity(V-Ah) 12V 36Ah
Fuel consumption (g/kW·h) 275.1 281.5
Fuel tank capacity (L) 13.5
Continuous running time (hr) 11

Advantages:

Manufacturing experience
Professional engineers and test equipment to ensure the quality of each machine
OEM service is available
High quality control system
Convenient use and moving
DHV/OHV, operation reliable
Low noise and small vibration
After-sales service

Business activities: shops, restaurants, workshops, hotels, offices, farms

Social activities: education, training and culture school or institution, medical center, Clinique, organization and government department, religion center, entertainment and sport center

Residential: Villa area, residence community, activity outdoors

Max. output power is 5.0kVA

Low noise design, 82 dB(A) at 4mts

Lightweight and compact

A full tank of fuel can last for 6.5 constant hours

"E" indicate electric starter (Optional)

Optional: Battery, wheels, handles and supporting leg

Generator model WD-5000CE

Rated frequency (Hz) 50 60

Rated output(kVA) 4.5 5.0

Max. output (kVA) 5.0 5.5

Rated voltage (V) 220V,230V,240V,220/110V,240/120V (For option)

Rated current (A) 39.2/19.6 41.7/20.8

Rated speed (r/min ) 3000 3600

Phase NO. Single phase

Power factor (cosφ) 1

Insulation grade B

Pole number 2

Excitation mode self-excitation and constant voltage(AVR)

panel type general panel

Output voltage (V) 220/230/240/220/110V, 240/120V (option)

Receptacle (mm) two receptacles

Connection pole without

DC12V output connection pole output

Overall dimension: 720×492×655mm

Dry weight (Kg) C:95 E:100

Working assorting weight(Kg) C:110 E:115

Noise Level(7M) db(A) 77

Structure type open frame

Engine Model 178FA

Engine type single-cylinder, vertical, four-stroke, direct injection

Cylinder No, -bore × stroke (mm) 1-78×64

Displacement 296

Rated power[kW(Hp)/(r/min)] 5.0/3000 5.5/3600

Compression ratio 20:01

Rated rotation speeds: 3000/3600

Cooling system air cooled

Lubrication system pressure splashed

Starting system C: Recoil E: Electric starter

Fuel type 0# (summer)-10# (winter)-20# (chillness) disel

Lube oil brand CD grade or SAE10W-30,15W-40

Capacity of cooling water (L) without

Lube capacity (L) 1.1

Starting motor capacity (V-kW) 12V 0.8kW

Charging generator capacity (V-A) 12V 3A

Battery capacity(V-Ah) 12V 36Ah

Fuel consumption (g/kW·h) 275.1 281.5

Fuel tank capacity (L) 13.5

Continuous running time (hr) 11

Manufacturing experience

Professional engineers and test equipment to ensure the quality of each machine

OEM service is available

High quality control system

Convenient use and moving

DHV/OHV, operation reliable

Low noise and small vibration

After-sales service
