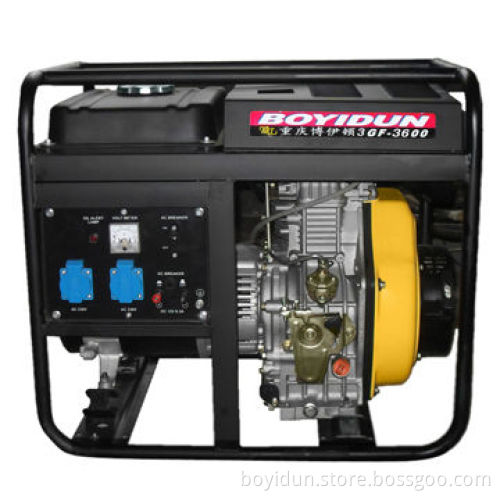

New 3kw diesel generator/small portable diesel generator

New 3kw diesel generator/small portable diesel generator

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Applications:

For business activities: shops, restaurants, workshops, hotels, offices, farms
For social activities: education, training and culture school or institution, medical center, Clinique, organization & government department, religion center, entertainment & sport center
For residential: Villa area, residence community, activity outdoors

Features:

Max. output power is 5.0kVA
Low noise design, 82dB(A) at 4mts
Lightweight & compact
A full tank of fuel can last for 6.5 constant hrs
"E" indicate electric starter (Optional)
Optional: Battery, wheels, handles & supporting leg

Specifications:

Generator model: WD-3000CE
Rated frequency (Hz): 50/60
Rated output (kVA): 3.5/4.0
Max. output (kVA): 3.0/3.5
Rated current (A): 39.2/19.6 & 41.7/20.8
Rated speed (r/min): 3,000/3,600
Phase NO. single phase/3 phase
Power factor (cosφ): 1
Insulation grade: B
Pole number: 2
Excitation mode: Self-excitation & constant voltage (AVR)
Panel type: General panel
Output voltages (V): 220/230/240/220/110/240/120V (option)
Receptacle (mm): 2 receptacles
Connection pole: Without
DC12V output: Connection pole output
Overall dimension: L×W×H(mm) 655×480×530
Dry weight (Kg): C: 65/E: 70
Working assorting weight (Kg): C: 78/E: 83
Noise level (7M) db (A): 77
Structure type: Open frame
Engine model: 178FA
Engine type: single-cylinder, vertical, four-stroke, direct injection
Cylinder: NO, -bore×stroke (mm): 1-78×64
Displacement: 296
Rated power [kW(Hp)/(r/min)]: 3.0/3,000, 3.5/3,600
Compression ratio: 20:01
Rated rotation speed: 3,000/3,600

Ignition system:

Cooling system: Air cooled
Lubrication system: pressure splashed
Starting system: C: Recoil/E: Electric starter
Fuel type: 0# (summer)/10# (winter)/20# (chillness) diesel
Lube oil brand CD grade or SAE 10W-30/15W-40
Capacity of cooling: Water (L) without
Lube capacity (L): 1.1
Starting motor capacity (V-kW): 12V 0.8kW
Charging generator capacity (V-A): 12V 3A
Battery capacity (V-Ah): 12V 36Ah
Fuel consumption (g/kW·h): 275.1/281.5
Fuel tank capacity (L): 13.5
Continuous running time (hr): 11

The advantages for you to choose us:

Professional engineers & test equipment to ensure the quality of @ machine
OEM service is available
High quality control system
Convenient use
DHV OHV, operation reliable
Low noise and small vibration
After-sales

For business activities: shops, restaurants, workshops, hotels, offices, farms

For social activities: education, training and culture school or institution, medical center, Clinique, organization & government department, religion center, entertainment & sport center

For residential: Villa area, residence community, activity outdoors

Max. output power is 5.0kVA

Low noise design, 82dB(A) at 4mts

Lightweight & compact

A full tank of fuel can last for 6.5 constant hrs

"E" indicate electric starter (Optional)

Optional: Battery, wheels, handles & supporting leg

Generator model: WD-3000CE

Rated frequency (Hz): 50/60

Rated output (kVA): 3.5/4.0

Max. output (kVA): 3.0/3.5

Rated current (A): 39.2/19.6 & 41.7/20.8

Rated speed (r/min): 3,000/3,600

Phase NO. single phase/3 phase

Power factor (cosφ): 1

Insulation grade: B

Pole number: 2

Excitation mode: Self-excitation & constant voltage (AVR)

Panel type: General panel

Output voltages (V): 220/230/240/220/110/240/120V (option)

Receptacle (mm): 2 receptacles

Connection pole: Without

DC12V output: Connection pole output

Overall dimension: L×W×H(mm) 655×480×530

Dry weight (Kg): C: 65/E: 70

Working assorting weight (Kg): C: 78/E: 83

Noise level (7M) db (A): 77

Structure type: Open frame

Engine model: 178FA

Engine type: single-cylinder, vertical, four-stroke, direct injection

Cylinder: NO, -bore×stroke (mm): 1-78×64

Displacement: 296

Rated power [kW(Hp)/(r/min)]: 3.0/3,000, 3.5/3,600

Compression ratio: 20:01

Rated rotation speed: 3,000/3,600

Cooling system: Air cooled

Lubrication system: pressure splashed

Starting system: C: Recoil/E: Electric starter

Fuel type: 0# (summer)/10# (winter)/20# (chillness) diesel

Lube oil brand CD grade or SAE 10W-30/15W-40

Capacity of cooling: Water (L) without

Lube capacity (L): 1.1

Starting motor capacity (V-kW): 12V 0.8kW

Charging generator capacity (V-A): 12V 3A

Battery capacity (V-Ah): 12V 36Ah

Fuel consumption (g/kW·h): 275.1/281.5

Fuel tank capacity (L): 13.5

Continuous running time (hr): 11

Professional engineers & test equipment to ensure the quality of @ machine

OEM service is available

High quality control system

Convenient use

DHV OHV, operation reliable

Low noise and small vibration

After-sales
