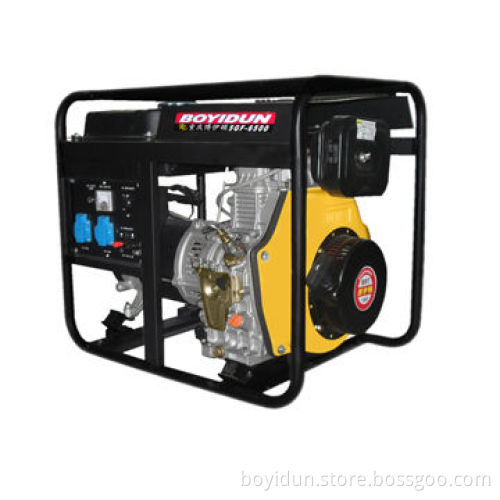

6kVa small diesel generators for sale made in china

6kVa small diesel generators for sale made in china

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Suitable for:

Business: shops, restaurants, workshops, hotels, offices, farms
Social: education, training and culture school or institution, medical center, Clinique, organization & government department, religion center, entertainment &sport center
Residential: villa area, residence community, activity outdoors
Max. output power is 5.0kVA
Low noise design, 82 dB(A) at 4mts
Lightweight and compact
A full tank of fuel can last for 6.5 constant hrs
"E" indicate electric starter (Optional)
Optional: Battery, wheels, handles & supporting leg

Specifications:

Generator model: WD-5000CE
Rated frequency (Hz): 50/60
Rated output (kVA): 4.5/5.0
Max. output (kVA): 5.0/5.5
Rated voltage (V): 220/230/240/220/110/240/120V (optional)
Rated current (A): 39.2/19.6 41.7/20.8
Rated speed (r/min): 3000/3600
Phase no.: Single phase
Power factor (cosφ): 1
Insulation grade: B
Pole number: 2
Excitation mode self-excitation and constant voltage(AVR)
panel type general panel
Output voltages: 220/230/240/220/110/240/120V (For option)
Receptacle (mm) two receptacles
Connection pole without
DC 12V output connection pole output
Overall dimensions:720×492×655 mm
Dry weight: C:95 E:100kg
Working assorting weight(Kg) C:110 E:115
Noise level (7M) db (A) 77
Structure type: Open frame
Engine model: 178FA
Engine type single-cylinder, vertical, four-stroke, direct injection
Cylinder No, -bore × stroke(mm) 1-78×64
Displacement: 296
Rated power [kW(Hp)/(r/min)]: 5.0/3000 5.5/3600
Compression ratio 20:01
Rated rotation speed: 3000/3600

lgnition system:

Cooling: Air cooled
Lubrication system pressure splashed
Starting:
- C: Recoil
- E: Electric starter
Fuel type 0# (summer)- 10# (winter) -20# (chillness) diesel
Lube oil brand: CD grade or SAE10W-30,15W-40
Capacity of cooling water (L): Without
Lube capacity (L): 1.1
Starting motor capacity (V-kW): 12V 0.8kW
Charging generator capacity (V-A): 12V/3A
Battery capacity(V-Ah): 12V/36Ah
Fuel consumption (g/kW·h): 275.1 281.5
Fuel tank capacity (L): 13.5
Continuous running time (hr): 11

Advantages:

Manufacturing experience
Professional engineers and test equipment to ensure the quality of each machine
OEM service is available
High quality control system
Convenient use and moving
DHV OHV, operation reliable
Low noise and small vibration
After-sales service

Business: shops, restaurants, workshops, hotels, offices, farms

Social: education, training and culture school or institution, medical center, Clinique, organization & government department, religion center, entertainment &sport center

Residential: villa area, residence community, activity outdoors

Max. output power is 5.0kVA

Low noise design, 82 dB(A) at 4mts

Lightweight and compact

A full tank of fuel can last for 6.5 constant hrs

"E" indicate electric starter (Optional)

Optional: Battery, wheels, handles & supporting leg

Generator model: WD-5000CE

Rated frequency (Hz): 50/60

Rated output (kVA): 4.5/5.0

Max. output (kVA): 5.0/5.5

Rated voltage (V): 220/230/240/220/110/240/120V (optional)

Rated current (A): 39.2/19.6 41.7/20.8

Rated speed (r/min): 3000/3600

Phase no.: Single phase

Power factor (cosφ): 1

Insulation grade: B

Pole number: 2

Excitation mode self-excitation and constant voltage(AVR)

panel type general panel

Output voltages: 220/230/240/220/110/240/120V (For option)

Receptacle (mm) two receptacles

Connection pole without

DC 12V output connection pole output

Overall dimensions:720×492×655 mm

Dry weight: C:95 E:100kg

Working assorting weight(Kg) C:110 E:115

Noise level (7M) db (A) 77

Structure type: Open frame

Engine model: 178FA

Engine type single-cylinder, vertical, four-stroke, direct injection

Cylinder No, -bore × stroke(mm) 1-78×64

Displacement: 296

Rated power [kW(Hp)/(r/min)]: 5.0/3000 5.5/3600

Compression ratio 20:01

Rated rotation speed: 3000/3600

Cooling: Air cooled

Lubrication system pressure splashed

Starting:

C: Recoil
E: Electric starter

Fuel type 0# (summer)- 10# (winter) -20# (chillness) diesel

Lube oil brand: CD grade or SAE10W-30,15W-40

Capacity of cooling water (L): Without

Lube capacity (L): 1.1

Starting motor capacity (V-kW): 12V 0.8kW

Charging generator capacity (V-A): 12V/3A

Battery capacity(V-Ah): 12V/36Ah

Fuel consumption (g/kW·h): 275.1 281.5

Fuel tank capacity (L): 13.5

Continuous running time (hr): 11

C: Recoil

E: Electric starter

Manufacturing experience

Professional engineers and test equipment to ensure the quality of each machine

OEM service is available

High quality control system

Convenient use and moving

DHV OHV, operation reliable

Low noise and small vibration

After-sales service
