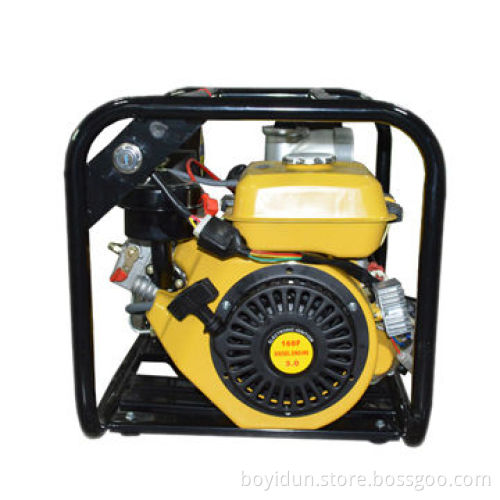

3" diesel water pump, hot-selling water pumpNew

3" diesel water pump, hot-selling water pumpNew

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Specifications:

Single cylinder, 4-stroke, OHV 25, air-cooled
211cc displacement,170F
Low consumption, easy operation
DWT80 DWT80-2
Suction diameter: 3" (80mm)
Discharge diameter: 3" (80mm)
Max. capacity (m³/hr.) 60 65
Max. head: 25m
Suction lift: 4m
Self-priming time: (s/5m) 50
Max speed: 3600rpm (adjustable)
Engine model 170/178F
Type OHV single-cylinder, vertical, air-cooled, 4-stroke, direct injection
Bore × stroke: 70*55 76X64mm
Displacement (cc) 211, 306
Compression ratio 21:01, 21:01
Rated power/rated speed (Hp/r/min) 3.4/3000 3.8/3600 5.8/3000 6.5/3600
Max power/ max speed (Hp/r/min): 3.8/3000, 4.2/3600 6.5/3000 7.2/3600
Lubricating system pressure splashed
Starting system recoil starter/electric starter
Fuel type: 0#, -10#, -20# diesel
Fuel tank capacity (L)/(US.Gal) 2.5L
Fuel consumption (g/hp.h/r/min) 209/3000 218/3600 206/3000 215/3600
Lube oil type CD grade or SAE 10W-30, 15W-40
Lube oil capacity (L): 0.75
Starting motor capacity: (V,kW) 12V 0.8kW
Charging generator capacity: (V,A) 12V 3A
Battery capacity (V, Ah): above 12V 20Ah
Overall dimension (L×W×H)mm: C=545X440X470
Dry weight (kg) ≤54 (Recoil starter) ≤57 (Electric starter)

Advantages:

High quality mechanical seal
Trash pump-particle up to diam:28mm
Full frame type
Easy and fast starting
Stand up the hard work
Recoil or electric starting
The miniaturized fuel injection system
Low fuel consumption
Lightweight and compact design

Why choose us:

Manufacturing experience
Professional engineers and test equipment to ensure the quality of each machine
OEM service is available
High quality control system
Convenient use and moving
DHV OHV, operation reliable
Low noise and small vibration
After-sales service

Single cylinder, 4-stroke, OHV 25, air-cooled

211cc displacement,170F

Low consumption, easy operation

DWT80 DWT80-2

Suction diameter: 3" (80mm)

Discharge diameter: 3" (80mm)

Max. capacity (m³/hr.) 60 65

Max. head: 25m

Suction lift: 4m

Self-priming time: (s/5m) 50

Max speed: 3600rpm (adjustable)

Engine model 170/178F

Type OHV single-cylinder, vertical, air-cooled, 4-stroke, direct injection

Bore × stroke: 70*55 76X64mm

Displacement (cc) 211, 306

Compression ratio 21:01, 21:01

Rated power/rated speed (Hp/r/min) 3.4/3000 3.8/3600 5.8/3000 6.5/3600

Max power/ max speed (Hp/r/min): 3.8/3000, 4.2/3600 6.5/3000 7.2/3600

Lubricating system pressure splashed

Starting system recoil starter/electric starter

Fuel type: 0#, -10#, -20# diesel

Fuel tank capacity (L)/(US.Gal) 2.5L

Fuel consumption (g/hp.h/r/min) 209/3000 218/3600 206/3000 215/3600

Lube oil type CD grade or SAE 10W-30, 15W-40

Lube oil capacity (L): 0.75

Starting motor capacity: (V,kW) 12V 0.8kW

Charging generator capacity: (V,A) 12V 3A

Battery capacity (V, Ah): above 12V 20Ah

Overall dimension (L×W×H)mm: C=545X440X470

Dry weight (kg) ≤54 (Recoil starter) ≤57 (Electric starter)

High quality mechanical seal

Trash pump-particle up to diam:28mm

Full frame type

Easy and fast starting

Stand up the hard work

Recoil or electric starting

The miniaturized fuel injection system

Low fuel consumption

Lightweight and compact design

Manufacturing experience

Professional engineers and test equipment to ensure the quality of each machine

OEM service is available

High quality control system

Convenient use and moving

DHV OHV, operation reliable

Low noise and small vibration

After-sales service
