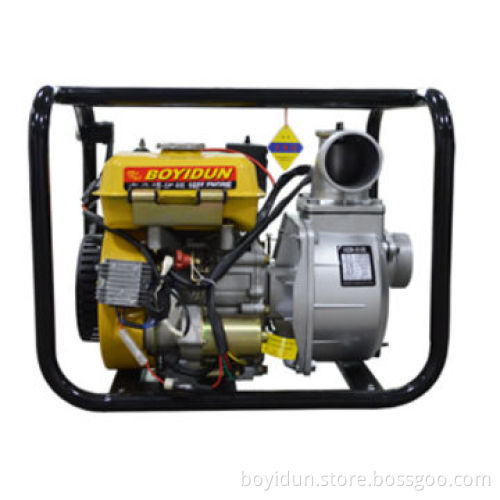

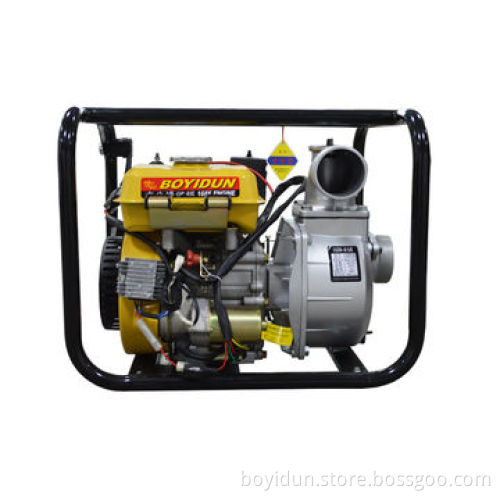

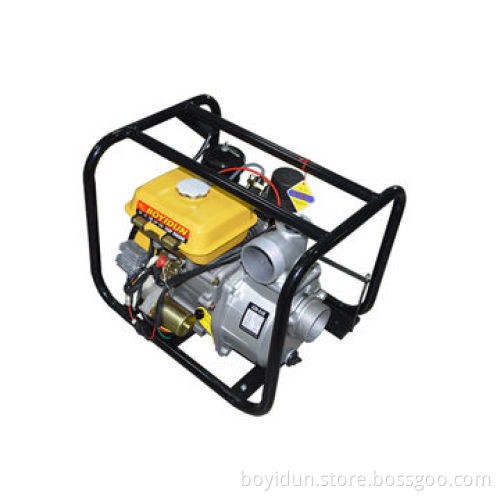

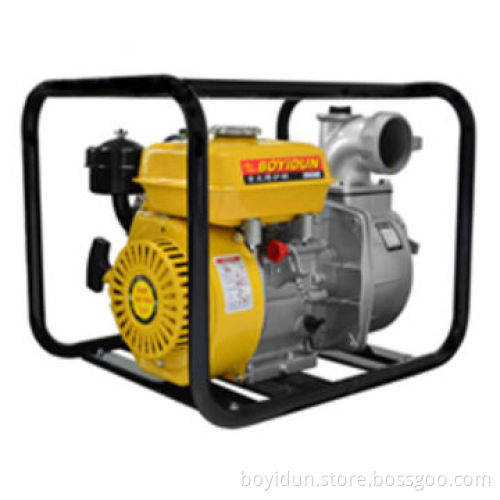

Diesel water pump, easy and fast starting
- Payment Type:
- L/C
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C |
|---|
Product Description
Product Description
- 211cc displacement and 170F
- Low consumption and easy to operate
- DWT80 DWT80-2
- Suction diameter: 3 inches (80mm)
- Discharge diameter: 3 inches (80mm)
- Maximum capacity: 60 65m3/hour
- Maximum head: 25m
- Suction lift: 4m
- Self-priming time: (s/5m) 50
- Maximum speed: 3600rpm (adjustable)
- Engine model: 170F178F
- Types: OHV single-cylinder, vertical, air-cooled, 4-stroke, direct injection
- Bore × stroke: 70*55/76*64mm
- Displacement: 211/306cc
- Compression ratio: 21:01 21:01
- Rated power/rated speed: 3.4/3000/3.8/3600/5.8/3000/6.5/3600rpm
- Maximum power/speed: 3.8/3000/4.2/3600/6.5/3000/7.2/3600rpm
- Lubricating system: pressure splashed
- Starting system: recoil starter/electric starter
- Fuel types: 0, -10 and -20# diesel
- Fuel tank capacity (L)/(US.Gal): 2.5L
- Fuel consumption (g/hp.h/r/min): 209/3000, 218/3600, 206/3000 and 215/3600
- Lube oil type: CD grade or SAE 10W-30, 15W-40
- Lube oil capacity: 0.75L
- Starting motor capacity: 12V/0.8kW
- Charging generator capacity: 12V/3A
- Battery capacity: above 12V/20Ah
- Overall dimensions: C = (L) 545 x (W) 440 x (H) 470mm
- Dry weight: ≤54kg (recoil starter), ≤57kg (electric starter)
- High quality mechanical seal
- Trash pump-particle up to diameter: 28mm
- Full frame type
- Easy and fast starting
- Stand up the hard work
- Recoil or electric starting
- The miniaturized fuel injection system
- Low fuel consumption
- Lightweight and compact design
- Manufacturing experience
- Professional engineers and test equipments to ensure the quality of each machine
- OEM service is available
- High quality control system
- Convenient use and moving
- DHV OHV, operating reliable
- Low noise and small vibration
- After-sales service
