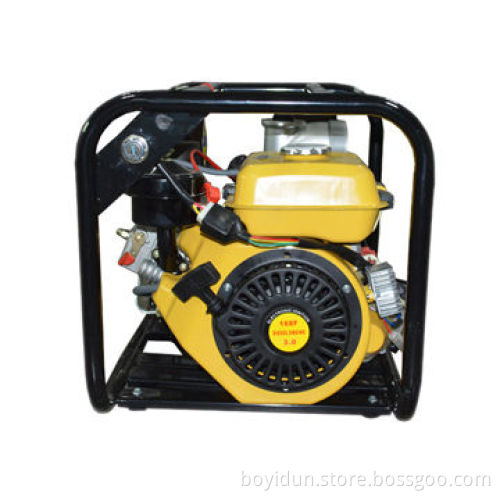

3" Diesel Water Pump for Irrigation
- Payment Type:
- L/C
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C |
|---|
Product Description
Product Description
- 211cc displacement, 170F
- Low consumption, easy operation
- DWT80 DWT80-2
- Suction diameter: 3 inches (80mm)
- Discharge diameter: 3 inches (80mm)
- Max. capacity (m3/hr): 60 65
- Max. head: 25m
- Suction lift: 4m
- Self-priming time: (s/5m) 50
- Max speed: 3,600rpm (adjustable)
- Engine model: 170F178F
- Types: OHV single-cylinder, vertical, air-cooled, 4-stroke, direct injection
- Bore × stroke: 70*55 76X64mm
- Displacement(cc): 211 306
- Compression ratio: 21:01 21:01
- Rated power/rated speed (Hp/r/min): 3.4/3000 3.8/3600 5.8/3000 6.5/3600
- Max power/max speed (Hp/r/min) :3.8/3000 4.2/3600 6.5/3000 7.2/3600
- Lubricating system: pressure splashed
- Starting system: Recoil starter/electric starter
- Fuel types: 0#,-10#,-20# diesel
- Fuel tank capacity (L)/(US.Gal): 2.5L
- Fuel consumption (g/hp.h/r/min): 209/3,000 218/3,600 206/3,000 215/3,600
- Lube oil type: CD grade or SAE 10W-30, 15W-40
- Lube oil capacity (L): 0.75
- Starting motor capacity (V,kW): 12V 0.8kW
- Charging generator capacity: 12V 3A
- Battery capacity: Above 12V/20Ah
- Overall dimension (L×W×H): C=545X440X470mm
- Dry weight(kg) ≤54(Recoil starter) ≤57(Electric starter)
- High quality mechanical seal
- Trash pump-particle up to diam: 28mm
- Full frame type
- Easy and fast starting
- Stand up the hard work
- Recoil or electric starting
- The miniaturized fuel injection system
- Low fuel consumption
- Lightweight and compact design
- Manufacturing experience
- Professional engineers and test equipments to ensure the quality of each machine
- OEM service is available
- High quality control system
- Convenient use and moving
- DHV OHV, operation reliable
- Low noise and small vibration
- After-sales service
