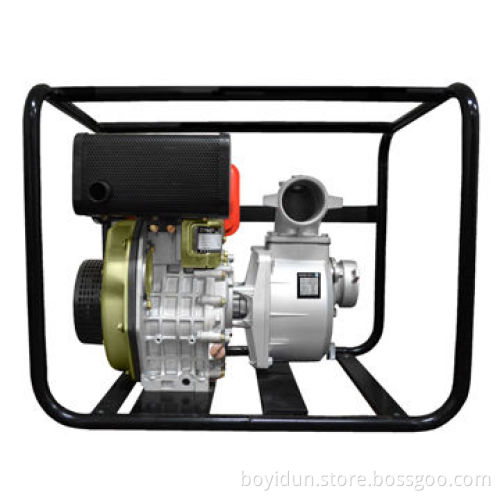

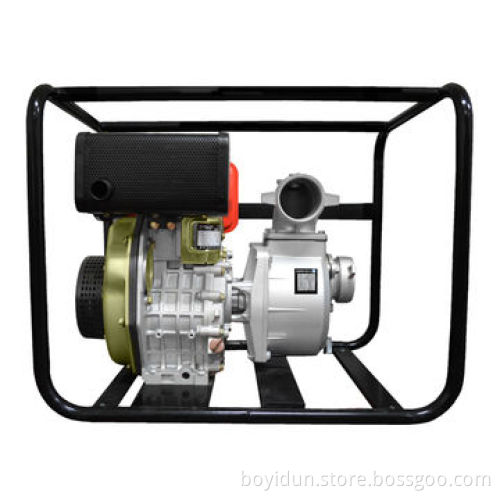

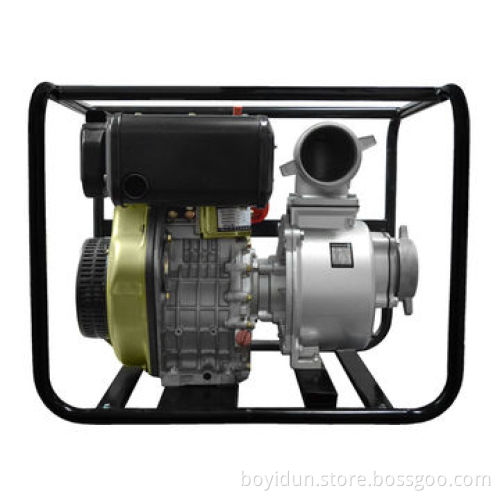

Diesel water pump, 2-inch/3-inch/4 inches

Diesel water pump, 2-inch/3-inch/4 inches

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Specifications:

Single cylinder, 4-stroke, OHV 25, air-cooled
211cc displacement, 170F
Low consumption, easy operation
DWT80 DWT80-2
Suction diameter: 3 inches (80mm)
Discharge diameter: 3 inches (80mm)
Max. capacity (m3/hr.): 60/65
Max. head: 25m
Suction lift: 4m
Self-priming time: (s/5m) 50
Max speed: 3,600rpm (adjustable)
Engine model: 170F178F
Type OHV single-cylinder, vertical, air-cooled, 4-stroke, direct injection
Bore×stroke (mm): 70*55 76X64
Displacement(cc) 211 306
Compression ratio: 21:01 21:01
Rated power/rated speed (Hp/r/min): 3.4/3000, 3.8/3600, 5.8/3000, 6.5/3600
Max power/max speed (Hp/r/min): 3.8/3000, 4.2/3600, 6.5/3000, 7.2/3600
Lubricating system: Pressure splashed
Starting system: Recoil-/electric-starter
Fuel types: 0#, -10#, -20# diesel
Fuel tank capacity (L)/(US.Gal): 2.5L
Fuel consumption (g/hp.h/r/min): 209/3000, 218/3600, 206/3000, 215/3600
Lube oil type: CD grade or SAE 10W-30, 15W-40
Lube oil capacity (L): 0.75
Starting motor capacity: 12V 0.8kW
Charging generator capacity: 12V 3A
Battery capacity (V/Ah): Above 12V 20Ah
Overall dimension (L×W×H)mm C = 545X440X470
Dry weight (kg) ≤54 (Recoil starter) ≤57 (Electric starter)

Advantages:

High quality mechanical seal
Trash pump-particle up to diam:28mm
Full frame type
Easy and fast starting
Stand up the hard work
Recoil or electric starting
The miniaturized fuel injection system
Low fuel consumption
Lightweight and compact design

The advantages for you to choose us:

Manufacturing experience
Professional engineers and test equipment to ensure the quality of each machine
OEM service is available
High quality control system
Convenient use and moving
DHV OHV, operation reliable
Low noise and small vibration
After-sales service
