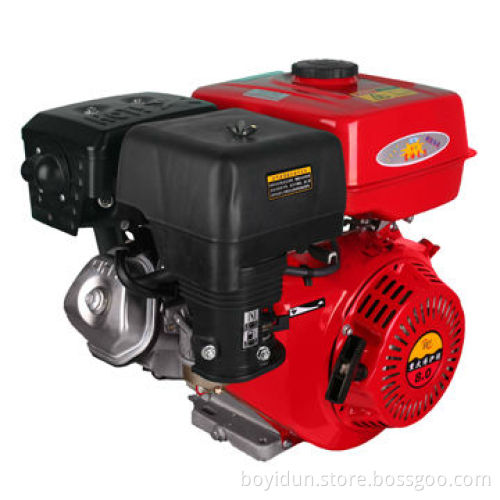

Gasoline Motor Engine, Recoil Start, 15hp, 420cc

Gasoline Motor Engine, Recoil Start, 15hp, 420cc

Get Latest Price

Payment Type:: L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C

Product Description

Detailed product description:

Power for generator, water pump, lawn mower, tillers, agricultural, construction and gardening machine, we can also produce according to your requirements
2.5-17hp gasoline engine with OHV design, oil alert (according to your requirement) stable, durable engines
Good parts assembled, such as the steel cam, crankshaft, recoil starter, electric start firm and thicker crank case
Particular testing to make sure the accurate frequency and turning speed
Battery and electric starter included for electric start
Compact structure, beautiful appearance, small volume, lightweight, fuel consumption is low, the power is great
Model: 170F-1:18
Engine type single cylinder 4 stroke OHV 25. dip air-cooled displacement, 216ml
Bore x stroke: 70x54
Compression ratio: 8:5:1
Max power: 7.5(5.5)/3600
Max torque: 14.5/1250N.m/rpm
Fuel consumption: ≤374g/kw.h
Min steady speed: 750±150r/min
Lubrication system: splashing
Starting system: hand recoil start
Ignition system: TEI
Fuel designation: 90# (GB17930-1999)
Fuel tank/oil capacity: 3.6/0.6L
N.W/G.W: 16/17kg
Dimension: 400×340×380mm
20ft FCL volume: 504 pieces
Engine model: 188 (manual) /188FE (electric)
Engine type: single cylinder, forced air cooling, 4-stroke 0HV 25°
Starting system: recoil start/electric start
Fuel: gasoline

Power for generator, water pump, lawn mower, tillers, agricultural, construction and gardening machine, we can also produce according to your requirements

2.5-17hp gasoline engine with OHV design, oil alert (according to your requirement) stable, durable engines

Good parts assembled, such as the steel cam, crankshaft, recoil starter, electric start firm and thicker crank case

Particular testing to make sure the accurate frequency and turning speed

Battery and electric starter included for electric start

Compact structure, beautiful appearance, small volume, lightweight, fuel consumption is low, the power is great

Model: 170F-1:18

Engine type single cylinder 4 stroke OHV 25. dip air-cooled displacement, 216ml

Bore x stroke: 70x54

Compression ratio: 8:5:1

Max power: 7.5(5.5)/3600

Max torque: 14.5/1250N.m/rpm

Fuel consumption: ≤374g/kw.h
