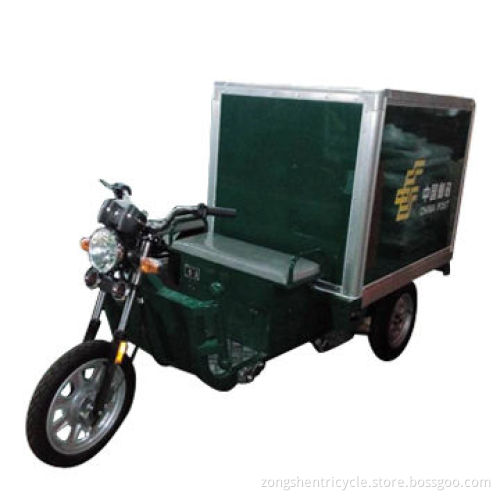

Cargo tricycle with 60V 800W brushless DC motor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Configuration:

Optional configuration:

Specifications:

60V, 800W brushless DC motor

18 MOSFET controller

Split rear bridge

3.00-12 rear tire

1.3m*1m cargo box

60V 1,000W motor with 18 MOSFET controller

1.5m*1m cargo box

Canvas

60V 1,000W motor with 24 MOSFET controller

Dimensions: 2750 x 1200 x 950mm

Weight: 180kg

Max speed: ≤40kph

Load capacity: 250kg

Turning radius: 2.5m

Range: ≥50km

Energy consumption per 100km: 1.5kWh

Max climbing capacity: ≥10°

Min ground clearance: 130mm

Max driving noise: ≤65dBa

Front tire: 2.75-14

Rear tire: 3.0-12

Wheelbase: 1870mm

Rear track: 860mm

Cargo box: 1.3m

Rated voltage: 60V

E-motor mode: 800W brushless DC differential motor

Under voltage protection: 52V

Over-current protection: 40A

Blockage protection: available

Brake mode: low-level

Reverse gear: available
