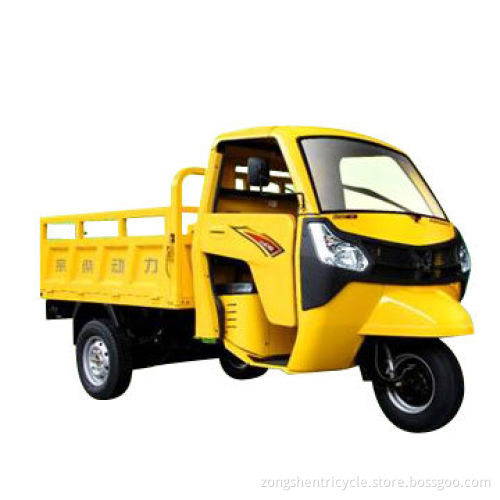

Big power tricycle with 500CC diesel engine, high load capacity
- Payment Type:
- Letter of Credit at Sight (Sight L/C)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Letter of Credit at Sight (Sight L/C) |
|---|
Product Description
Product Description
- 500CC diesel engine
- Handle steering, steering wheel
- Semi-closed cabin, full closed cabin
- Variable cross section plate rear shock absorbers, double rear dampers
- Metal plate frame
- CV joint type independent output axle shaft
- Double meters
- Rear bumper
- Gear box and gearshift booster
- 2.0, 2.3, 2.5m normal cargo box, enhanced cargo box
- Dimensions L*W*H: 3490 x 1400 x1750mm
- Wheelbase: 2,500mm
- Rear wheel track: 1,150mm
- Ground clearance: 210mm
- Weight: 585kg
- Load capacity: 2,000kg
- FR/RR tire size and pressure: 5.0012/165R13/400kPa
- Shock absorber: F: hydraulic/R: variable cross section plate
- Brake: F&R: hydraulic drum
- Battery: 12V/40Ah
- Engine model: DSW500
- Engine types: single cylinder, horizontal, water cooled, 4 stroke, overhead camshaft
- Bore x stroke: 86 x 85mm
- Capacity: 494cc
- Compression ratio: 21
- Cylinder liner: Detachable wet cast iron liner
- Lubrication method: Crankcase: Force feed and splash
- Gearbox: Splash
- Ignition mode: Electric
- Max. Net power/rotate speed: 10KW/4000rpm
- Max torque/rotate speed: 28N.m/2500rpm
- Max No load speed: 55km/h
