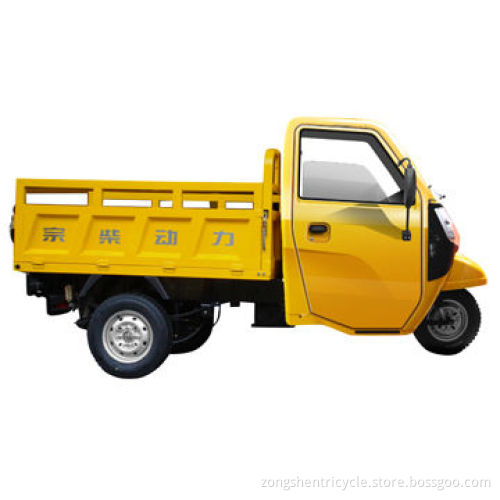

Diesel three wheeler

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

500CC diesel engine

Handle steering, steering wheel

Semi-closed cabin, full closed cabin

Variable cross section plate rear shock absorbers, double rear dampers

Metal plate frame

CV joint type independent output axle shaft

Double meters

Rear bumper

Gear box and gearshift booster

2.0, 2.3, 2.5m normal cargo box, enhanced cargo box

Dimensions L*W*H: 3,490 x 1,400 x1,750mm

Wheelbase: 2,500mm

Rear wheel track: 1,150mm

Ground clearance: 210mm

Weight: 585kg

Load capacity: 2,000kg

FR/RR tire size and pressure: 5.0012/165R13/400kPa

Shock absorber: F: hydraulic/R: variable cross section plate

Brake: F&R: hydraulic drum

Battery: 12V/40Ah

Engine model: DSW500

Engine types: single cylinder, horizontal, water cooled, 4 stroke, overhead camshaft

Bore x stroke: 86 x 85mm

Capacity: 494cc

Compression ratio: 21

Cylinder liner: Detachable wet cast iron liner

Lubrication method: Crankcase: Force feed and splash

Gearbox: Splash

Ignition mode: Electric

Max. Net power/rotate speed: 10KW/4000rpm

Max torque/rotate speed: 28N.m/2500rpm

Max. No load speed: 55km/h
