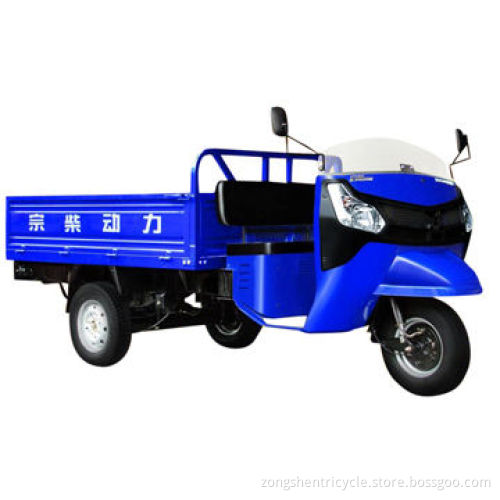

500cc Diesel Tricycle, Metal Plate Frame

Get Latest Price

Payment Type:: Letter of Credit at Sight (Sight L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Basic configurations:

500cc diesel type
Handle steering
Semi-closed cabin
Variable cross section plate rear shock absorbers and double rear dampers
Metal plate frame
CV joint type independent output axle shaft
Double meters
Rear bumper
2.0m normal cargo box

Optional:

Steering wheel
Full closed cabin
Gear box and gearshift booster
2.0, 2.3, 2.5m normal cargo box and enhanced cargo box

Specifications:

Dimensions: (L) 3490 x (W) 1400 x (H) 1750mm
Wheelbase: 2500mm
Rear wheel track: 1150mm
Ground clearance: 210mm
Weight: 585kg
Load capacity: 2000kg
FR/RR tire size and pressure: 5.0012/165R/13/400kPa
Shock absorber:
- F: hydraulic
- R: variable cross section plate
Brake:
- F and R: hydraulic drum
Battery: 12V/40Ah
Engine model: DSW500
Engine types: single cylinder, horizontal, water cooled, 4 stroke and overhead camshaft
Bore x stroke: 86 x 85mm
Capacity: 494cc
Compression ratio: 21
Cylinder liner: detachable wet cast iron liner
Lubrication method: crankcase: force feed and splash
Gearbox: splash
Ignition mode: electric
Maximum net power/rotating speed: 10kW/4000rpm
Maximum torque/rotating speed: 28nm/2500rpm
Maximum number of loading speed: 55kph

500cc diesel type

Handle steering

Semi-closed cabin

Variable cross section plate rear shock absorbers and double rear dampers

Metal plate frame

CV joint type independent output axle shaft

Double meters

Rear bumper

2.0m normal cargo box

Steering wheel

Full closed cabin

Gear box and gearshift booster

2.0, 2.3, 2.5m normal cargo box and enhanced cargo box

Dimensions: (L) 3490 x (W) 1400 x (H) 1750mm

Wheelbase: 2500mm

Rear wheel track: 1150mm

Ground clearance: 210mm

Weight: 585kg

Load capacity: 2000kg

FR/RR tire size and pressure: 5.0012/165R/13/400kPa

Shock absorber:

F: hydraulic
R: variable cross section plate

Brake:

F and R: hydraulic drum

Battery: 12V/40Ah

Engine model: DSW500

Engine types: single cylinder, horizontal, water cooled, 4 stroke and overhead camshaft

Bore x stroke: 86 x 85mm

Capacity: 494cc

Compression ratio: 21

Cylinder liner: detachable wet cast iron liner

Lubrication method: crankcase: force feed and splash

Gearbox: splash

Ignition mode: electric

Maximum net power/rotating speed: 10kW/4000rpm

Maximum torque/rotating speed: 28nm/2500rpm

Maximum number of loading speed: 55kph

F: hydraulic

R: variable cross section plate

F and R: hydraulic drum
