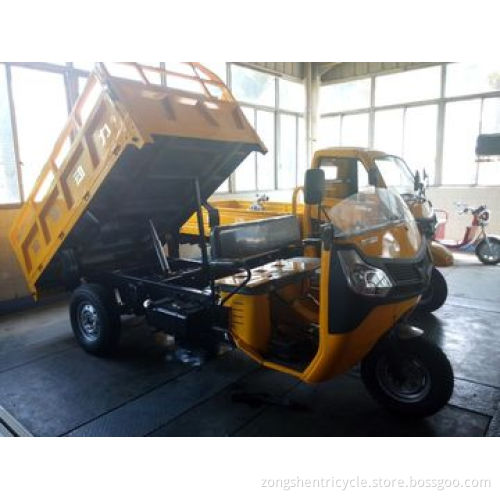

500CC Diesel tricycle

Get Latest Price

Payment Type:: Letter of Credit at Sight (Sight L/C)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Letter of Credit at Sight (Sight L/C)

Product Description

Basic configuration:

500CC diesel engine
Handle steering
Semi-closed cabin
Variable cross-section plate rear shock absorbers, double rear dampers
Metal plate frame
CV joint type independent output axle shaft
Double meters
Rear bumper
2.0m normal cargo box

Optional configuration:

Full closed cabin
Gear box and gearshift booster
Steering wheel
Hydraulic lift
2.3m, 2.5m normal cargo box
2.0m, 2.3m, 2.5m enhanced cargo box

Specifications:

Dimension (L*W*H): 3,490x1,400x1,750mm
Wheel base: 2,500mm
Rear wheel track: 1,150mm
Ground clearance: 210mm
Weight: 585kg
Load capacity: 2,000kg
FR/RR tire size & pressure: 5.00-12/165R13/400kpa
Shock absorber:
- F: Hydraulic
- R: Variable cross-section plate
Brake: F&R: Hydraulic drum
Battery: 12V40Ah
Engine model: DSW500
Engine type: Single cylinder, horizontal, water-cooled, 4 strokes, overhead camshaft
Bore X stroke: 86x85mm
Capacity: 494cc
Compression ratio: 21
Cylinder liner: Detachable wet cast iron liner
Lubrication methods:
- Crankcase: Force-feed and splash
- Gearbox: Splash
Ignition mode: Electric
Max.net power: 10KW/3,500-4,000rpm
Max. torque: 28N.m/2,200-2,500rpm
Max. no-load speed: 55km/h
Clutch: Dry single-disc type
Transmission: Five speed & reverse gear, differential integrated
Wheel type: Steel plate
Gear shift mode: Manual
Fuel tank capacity: 20L/0 (GB 17930-2011)
Fuel: 0# diesel

500CC diesel engine

Handle steering

Semi-closed cabin

Variable cross-section plate rear shock absorbers, double rear dampers

Metal plate frame

CV joint type independent output axle shaft

Double meters

Rear bumper

2.0m normal cargo box

Full closed cabin

Gear box and gearshift booster

Steering wheel

Hydraulic lift

2.3m, 2.5m normal cargo box

2.0m, 2.3m, 2.5m enhanced cargo box

Dimension (L*W*H): 3,490x1,400x1,750mm

Wheel base: 2,500mm

Rear wheel track: 1,150mm

Ground clearance: 210mm

Weight: 585kg

Load capacity: 2,000kg

FR/RR tire size & pressure: 5.00-12/165R13/400kpa

Shock absorber:

F: Hydraulic
R: Variable cross-section plate

Brake: F&R: Hydraulic drum

Battery: 12V40Ah

Engine model: DSW500

Engine type: Single cylinder, horizontal, water-cooled, 4 strokes, overhead camshaft

Bore X stroke: 86x85mm

Capacity: 494cc

Compression ratio: 21

Cylinder liner: Detachable wet cast iron liner

Lubrication methods:

Crankcase: Force-feed and splash
Gearbox: Splash

Ignition mode: Electric

Max.net power: 10KW/3,500-4,000rpm

Max. torque: 28N.m/2,200-2,500rpm

Max. no-load speed: 55km/h

Clutch: Dry single-disc type

Transmission: Five speed & reverse gear, differential integrated

Wheel type: Steel plate

Gear shift mode: Manual

Fuel tank capacity: 20L/0 (GB 17930-2011)

Fuel: 0# diesel

F: Hydraulic

R: Variable cross-section plate

Crankcase: Force-feed and splash

Gearbox: Splash
