Elevator Part, WFO Plastic Balance Compensating Chain with Low-noise

Elevator Part, WFO Plastic Balance Compensating Chain with Low-noise

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Description:

It is a new kind of elevator balance compensating chain withexcellent performance, it can ensure the elevator working under anideal and stable state

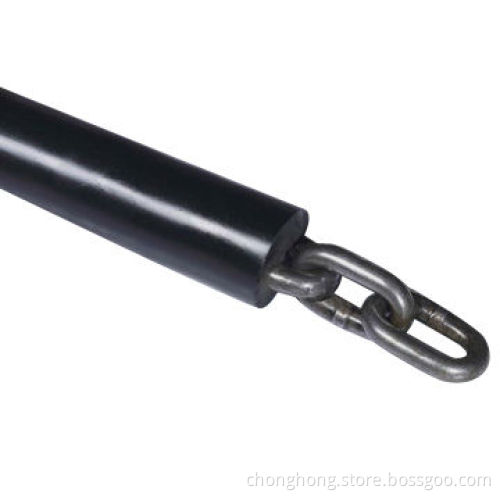

Seen from structure, it is the perfect combination ofelectric-welding anchor chain and composite material PVC
It has unique functions and has the following strong traits:greater elasticity, smaller bending radius, flame-resistant,anti-aging, wider temperature adaption range and more
After using this kind of compensating chain, the operating ofyour elevator will be stable and smooth and working withlow-noise
It is used for elevator with rated speed of higher than1.75m/second

Installation instruction:

Before installation, it is necessary to straighten thecompensating chain, in order to prevent the rubber or plastic frombeing cracked or peeled by twisting during working
The way to eliminate: after hanging the compensating chain atthe bottom of the car, run the elevator to the top slowly, thenmeasure the required length, cut-off, roll and warp the length lefton the ground, keep it over 1 meter from the ground and hang it for24 hours statically, till all spirals is released and then hanganother side
After several days of elevators working, recheck whether thereis any spiral, do it again
The center line of the dampening device should be kept in thesame vertical line with the hanging point, to prevent anyaccidental breakdown caused by the friction between thecompensation chain and the guiding device
The minimum distance between the installation point of thedampening device and the bottom of the loop of the compensatingchain is one meter, to prevent the broken of the compensation chaincaused by little bending radius

It is a new kind of elevator balance compensating chain withexcellent performance, it can ensure the elevator working under anideal and stable state

Seen from structure, it is the perfect combination ofelectric-welding anchor chain and composite material PVC

It has unique functions and has the following strong traits:greater elasticity, smaller bending radius, flame-resistant,anti-aging, wider temperature adaption range and more

After using this kind of compensating chain, the operating ofyour elevator will be stable and smooth and working withlow-noise

It is used for elevator with rated speed of higher than1.75m/second

Before installation, it is necessary to straighten thecompensating chain, in order to prevent the rubber or plastic frombeing cracked or peeled by twisting during working

The way to eliminate: after hanging the compensating chain atthe bottom of the car, run the elevator to the top slowly, thenmeasure the required length, cut-off, roll and warp the length lefton the ground, keep it over 1 meter from the ground and hang it for24 hours statically, till all spirals is released and then hanganother side

After several days of elevators working, recheck whether thereis any spiral, do it again

The center line of the dampening device should be kept in thesame vertical line with the hanging point, to prevent anyaccidental breakdown caused by the friction between thecompensation chain and the guiding device

The minimum distance between the installation point of thedampening device and the bottom of the loop of the compensatingchain is one meter, to prevent the broken of the compensation chaincaused by little bending radius
