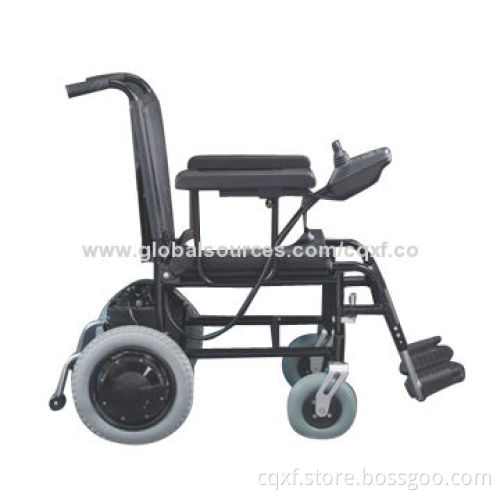

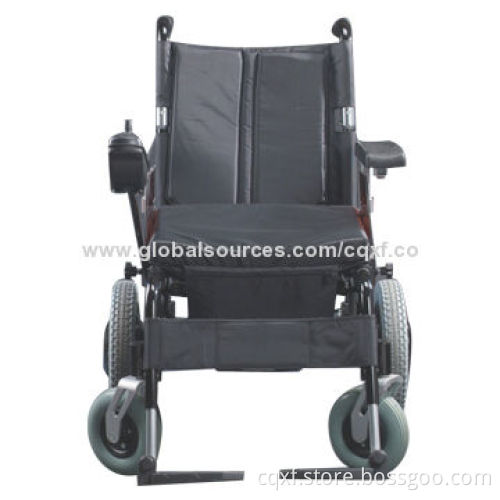

Electric Wheelchair with 36V Voltage and 180W Power

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Overall length: 1150mm

Overall width: 700mm

Overall height: 930mm

Axle length: 312mm

Wheel distance: 535mm

Ground clearance: 85mm

Front tyre size: 6-inch

Rear tyre size: 12-inch

Total weight include battery: 47kg

Seat type: fastness seat

Motor voltage: 24V

Motor power: 180W

Maximum load: 120kg

Minimum turning radius: 1.2m

Brake: electro-mechanical (patent)

Brake distance: ≤1.5m

Lead-acid battery: 12V, 20Ah x 2

Charge input voltage: 110/220V AC

Charge output voltage: 27.2V

Maximum speed: 6kph

One-charge range: ≥20km

Climbing capacity: ≥8°

Static hill-holding capacity: 8°

Electric consumption: ≤6kWh/100km

Longitudinal stability: 20°

Lateral stability: 15°

Obstacle clearing height: ≥40mm

Obstacle clearing width: 100mm

Packing:

Loading:

Carton size: 80*51*81cm

Gross weight: 49kg

20ft container: 85 pieces

40ft HQ container: 205 pieces
