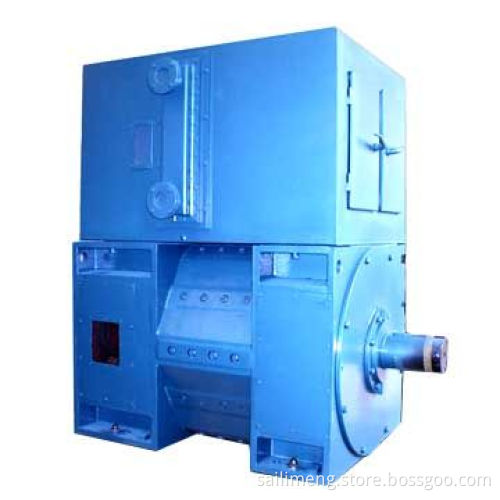

Inclined Motor with 100 to 3500kW Power Range

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

This series middle large synchronous motor used for drivinginclined water pump, motor mounting inclined tilt angle of 15 to60°

This series synchronous motor are in compliance with nationalstandards GB755 general requirements for rotating electricalmachines, GB14711 safe requirements for rotating electricalmachines and relevant IEC standard

TXT series inclined synchronous motor technique parameters:

Basic structure of motor is whole mounting, rolling bearing,have basic plant, motor thrust bearing only bear axial thrust thatcause by motor itself slope installation duty is S1
Basic protection class is IP23, other class can be madeaccording to requirement
Cooling method IC01, other class can be customized
Power range: 100 to 3500kW
Speed range: 150 to 1000rpm
Voltage: 6000, 10,000 and 13,800V
Insulation class: F stator adopts vacuum pressureimpregnation
Excitation type: static excitation or other type
Motors can be made special types with salt-fog moisture andmold-proof or for high elevation

Basic structure of motor is whole mounting, rolling bearing,have basic plant, motor thrust bearing only bear axial thrust thatcause by motor itself slope installation duty is S1

Basic protection class is IP23, other class can be madeaccording to requirement

Cooling method IC01, other class can be customized

Power range: 100 to 3500kW

Speed range: 150 to 1000rpm

Voltage: 6000, 10,000 and 13,800V

Insulation class: F stator adopts vacuum pressureimpregnation

Excitation type: static excitation or other type

Motors can be made special types with salt-fog moisture andmold-proof or for high elevation

Send your message to this supplier
