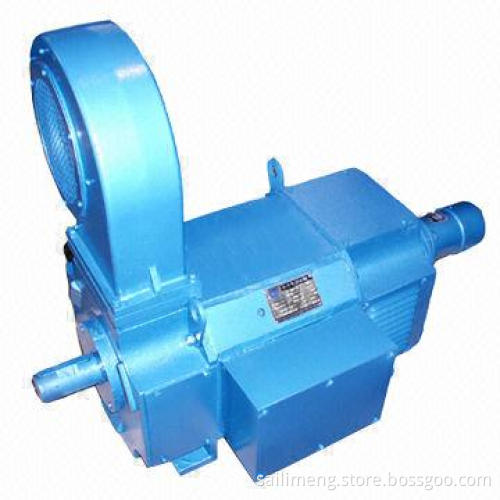

DC Motor in Z Series, Medium

Get Latest Price

Payment Type:: T/T or L/C at Sight

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

CEMF developed the Z series DC motor, manufactured with the latest technology, this series motor characters, outline installation dimensions and technical requirements are in line with JB/T 9577-1999, Z series medium DC motor technology requirement and International Electro technical Commission standard (IEC), the motor part of the mechanical dimensions, tolerances comply with the international Committee for Standardization standard (ISO)

Z series DC motor insulation class F, it can be connected with silicon-control power supply, center high between 355 to 630mm, motor adopt rolling bearing, center high above 630mm adopt rolling bearing or sliding bearing

Our company manufactures the motors accordance with ISO : 9001 to ensure the motor runs reliability

Parameters:

Center high: 355 to 1,000mm
Power: 75 to 2,800kW
Below Z710 voltage grade: 220/330/440/550/660/750V, Z800, Z900 and Z1,000
Voltage grade: 440/550/660/750/800/850/900/950/1,000/1,050V or other voltage grade
Motor is separately excitation voltage is 110/220V
Excitation winding have four lead terminal, two sets, when two sets parallel, excitation voltage is 110/220V when series connection
Motor allows force excited (when force excited, current can exceed rated excitation current instantaneous, but the excitation current can't exceed rated excitation current after stabilizing), force excitation voltage can't exceed 500V
Duty of this series motor is ventilation continue duty S1, the cooling methods are IC06 (air enter)

Center high: 355 to 1,000mm

Power: 75 to 2,800kW

Below Z710 voltage grade: 220/330/440/550/660/750V, Z800, Z900 and Z1,000

Voltage grade: 440/550/660/750/800/850/900/950/1,000/1,050V or other voltage grade

Motor is separately excitation voltage is 110/220V

Excitation winding have four lead terminal, two sets, when two sets parallel, excitation voltage is 110/220V when series connection

Motor allows force excited (when force excited, current can exceed rated excitation current instantaneous, but the excitation current can't exceed rated excitation current after stabilizing), force excitation voltage can't exceed 500V

Duty of this series motor is ventilation continue duty S1, the cooling methods are IC06 (air enter)
