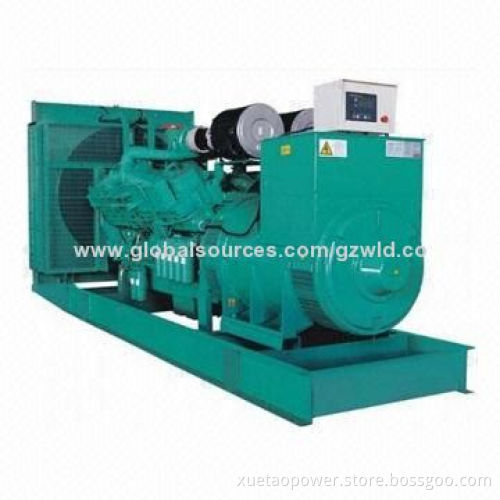

850kW Cummins Emergency Power Diesel Generator Set (KTA38-G5), 400/230V Rated Voltage

850kW Cummins Emergency Power Diesel Generator Set (KTA38-G5), 400/230V Rated Voltage

Get Latest Price

Payment Type:: T/T or L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C or Western Union

Product Description

Company information:

It is the first joint venture of U.S.A Cummins Inc. in China
Offering global maintenance service Featuring with low oil cons. economical, strong power, compct unit, easy maintenance, reliable performance
Weilida Cooperate with Chongqing Cummins as OEM fty in south china dedicating selling genuine and new qualified diesel generator set and spare parts, is a promised enterprise which enjoy high reputation in the industrial

Specifications:

Generator set:
- Genset model: DC850
- Dimensions: 4,450 x 1,638 x 2,200mm
- Weight: 7,200kg
- Prime power: 850kW/1,063kVA
- Standby power: 935kW/1,169kVA
- Rated current: 1,530A
- Rated voltages: 400/230V
- Speed: 1,500/1,800rpm
- Frequencies: 50/60Hz
- Output type: AC three phase
- Power factor (Cos Phi): 0.8
- Altitude: ≤1,000m
- Base fuel tank: eight hours (standard)
- Standards: JB/T 1403-1999, GB/T 12501-1990
- Warranty: 1 year or 1,500 running hours
Engine:
- Engine model: KTA38-G5
- Type of governor: electronic governor
- Type: V 12 cylinder
- Bore x stroke: 159 x 159mm
- Compression ratio: 17:1
- Voltage regulation: ±0.5%
- Fuel consumption rate: ≤205g/kWh
Alternator:
- Brands: Stamford, Siemens, Marathon, Faraday at optional
- Voltage control: AVR model
- Number of phases: 3
- Exciter type: brushless excitation
- Insulation class: H
- Protection class: IP22/IP23
Control panel:
- Automatic control panel (AMF), LED display
- Four protection systems
- Emergency stop
- DSE/COMAP/SMARTGEN/HARSON
Optional:
- Trailer type
- Sound-proof/waterproof
- ATS (automatic transfer switch)
- Water heater
- Parallel system
- Remote system
Sound-proof/silent box:
- Excellent ventilation
- Fuel tank mounted on base frame for 12 hours working
- Highly corrosion-resistant construction
- Excellent access for maintenance
- Security and safety
- 1m <80dBa/7m <70dBa
