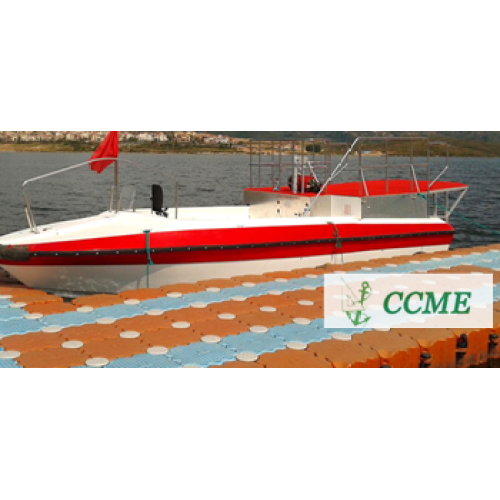

Floating docks for jet ski and boats Floating platform Float Floating Pontoons

1.Unlimited Number of Construction

The pontoons of the construction can adapt to any specific lakeside residen's needs and can be assembled to correnspond with the shape or size you have in mind. The possible number of construction is unlimited.

2.Fast and Easy to Assemble
Only 2 people are needed to put together 50 cubes in a one hour period.The pontoon construction is very simple, blocks held together tightly and filmly with special connecting pins. All parts are light weight and easy to handle.

Load Capacity:
each one square meter is made up of four pontoons, top load is 350kgs.
Draft without load: 2.5-3cm;
Draft with load of 150kgs: 15-20cm(safe);
Draft with load of 300kgs:35-40cm(load limit)
Anti Wind Wave:
1.The wave on water surface between 2-class and 3-class belongs to safe applicable range.
2.The wave on water surface between 3-class and 6-class can be applicable; however,the safety protection must be reinforced.
3.The wave on water surface between 6-class and 9-class is the restricted applicable range (it is suggested that the shipping shall not be parked and the visitors shall not be in or out).
Attention: to avoid shaking of the dock, the area of internal lake's dock is not less than 30 square meter; the area of stage is not less than 100 square meter.
Anchoring:1.If water is less than 3m in depth, steel piles are to be put in proper place and then connected by wheels, which can prevent the floating dock from moving laterally but can automatically rise and fall in line with water level.
2.If water is over 3m in depth, anchoring can be used by sinking the anchorage block pulled by steel cables to the water bottom.
