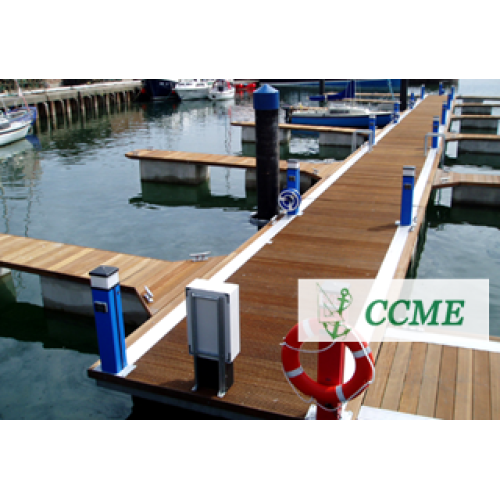

Marina dock with steel frame and wooden decking floating pontoon

$137.00

≥5 Square Meter

Min. Order:: 5 Square Meter

Min. Order:: 5 Square Meter

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Mooring fingers and pontoons located at 125mm intervals to allow any orientation and layout.
The new pile brackets can be positioned at 50mm intervals
Facility for mooring cleats every 180mm.
Unique aluminium bearer design supports the deck and completely protected by neoprene rubber to isolate galvanic corrosion.
Large top entry service ducts provided on both sides of the walkways to allow easy provision of services to the berthing areas.
Triangular Plastic splays with rubber buttons for anti-slip properties.
Plastic finger ends
Specially designed and developed glass fibre reinforced concrete floats providing an exceptional buoyancy level of upto 2.5kn/m² - higher than recommended standards.

1) raw material: imported PE and interior EPS foam one-piece construction filled

2) function: used for dock building project or water sport project

3) measurement:

Item No.	specification			Buoyancy (100% drown)	Quantity
	Length	Width	Height		For 20`GP	For 40`GP
PF-004	1200mm	800mm	550mm	520kg	56pcs	120pcs
PF-004H	1200mm	800mm	650mm	620kg	40pcs	85pcs
PF-005	1800mm	1400mm	400mm	1000kg	26pcs	54pcs
PF-007	1420mm	900mm	550mm	700kg	43pcs	89pcs
PF-007H	1420mm	900mm	650mm	830kg	34pcs	70pcs
PF-007T	1420mm	900mm	700mm	890kg	32pcs	68pcs
PF-008	1200mm	610mm	500mm	360kg	76pcs	165pcs
PF-009	1200mm	1100mm	500mm	660kg	44pcs	96pcs
PF-009H	1200mm	1100mm	620mm	810kg	36pcs	76pcs
PF-010	1730mm	1185mm	600mm	1230kg	17pcs	40pcs
PF-011	1380mm	950mm	550mm	720kg	40pcs	83pcs
PF-011H	1380mm	950mm	650mm	850kg	33pcs	66pcs
PF-012	1650mm	620mm	500mm	510kg	55pcs	117pcs
PF-012WR	1650mm	920mm	500mm	750kg	34pcs	75pcs
PF-012WT	1650mm	960mm	500mm	790kg	30pcs	62pcs
PF-013	1580mm	1180mm	650mm	1210kg	21pcs	44pcs
PF-016	1200mm	660mm	550mm	435kg	69pcs	144pcs

4) Fix way:connected the frame with screws fixed,then decking on the top

5) Durable&Tough&Stable ;Environmentally friend

6) Export to more than 10 countries in Europe and America

Choose us ,do not hesitate

1) Design team:We have a professional design team.Many designs as you choose.Customization is always welcome

2) Professional factory:We are manufacturer,sperializing in manufacturing rotational molds and rotomolding products,such as dock float ,for more than 12 years.Competitive price with good quality

3) Sample:We can give out sample in 5 days,but it is not free.And the shipment charge usually paid by your side.
