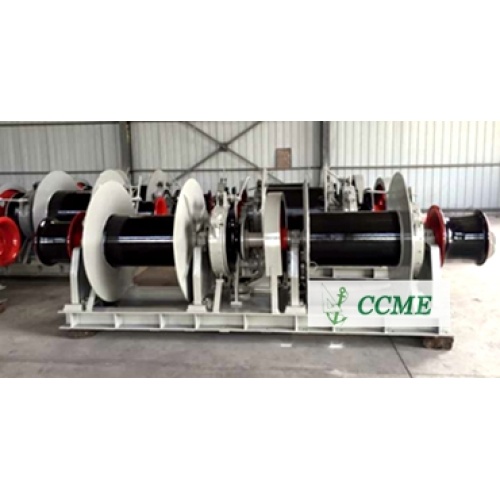

Marine hydraulic anchor windlass

$2200.00

≥1 Set/Sets

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

1. We are the Group company which has 6 subsidiary companies with 200 millions USD yearly output value.
2. The few factory which can produce the construction winch, marine winch, mine winch with electric type, hydraulic type , diesel engine type.
3. With 3 senior engineers are the drafters of China Winch National Standard .We are the council member of Chinese winch association.
4. The leader of 6S management in winch and crane industry.
5. Our engineers are available to overseas anytime anywhere.
6.All kinds of anchor winch can be customized according to your demands.

Marine electric or diesel hydraulic Anchor windlass, anchor capstan with specification of dia. 12.5 to 80 mm. mooring capstan of 5-150 kN, winches (5-1000kN) widely used in ocean ship/vessel, and the products have obtained the CCS, ABS, BV, GL, DNV, LR, NK, KR etc certificates

Name	Chain	Working	Supporting	Working	Warping	Warping	Motor
Name	Dia. mm	Load KN	Load KN	Speed	Load	Speed	Power KW
Φ14/16/17.5 Electric Anchor Windlass	14/16/17.5	8.3/10.9/13.0	51/67/80	≥12	8	10	4.3/1.7
Φ19/20.5/22 Electric Anchor Windlass	19/20.5/22	15.3/17.9/20.6	95/110/126	≥12	10	10	8.5/3.5
Φ24/26 Electric Anchor Windlass	24/26	24.5/28.7	149/175	≥9	20	8.5	8.5/3.5
Φ26/28 Electric Anchor Windlass	26/28	28.7/33.3	175/202	≥9	20	8.5	11/11/7.5
Φ28/30/32 Electric Anchor Windlass	28/30/32	33.3/38.3/43.5	202/231/261	≥9	30	8.5	16/16/11
Φ32/34/36 Electric Anchor Windlass	32/34/36	43.5/49.1/55.1	261/294/329	≥9	30	8.5	16/16/11
Φ32/34/36/38 Electric Anchor Windlass	32/34/36/38	43.5/49.1/55.1/61.4	261/294/329/365	≥9	30	8.5	22/22/16
Φ38/40/42 Electric Anchor Windlass	38/40/42	61.4/68.0/75.0	365/402/442	≥9	50	8.5	22/22/16
Φ42/44/46 Electric Anchor Windlass	42/44/46	75.0/82.3/89.9	442/483/526	≥9	30	12	22/22/16
Φ44/46/48 Electric Anchor Windlass	44/46/48	82.3/89.9/97.9	483/526/570	≥9	30	12	30/30/22
Φ50/52/54 Electric Anchor Windlass	50/52/54	106.3/114.9/123.9	617/664/713	≥9	50	12	30/30/22
Φ56/58/60 Electric Anchor Windlass	56/58/60	133.3/143.0/153	764/816/870	≥9	50	14	45/45/30
