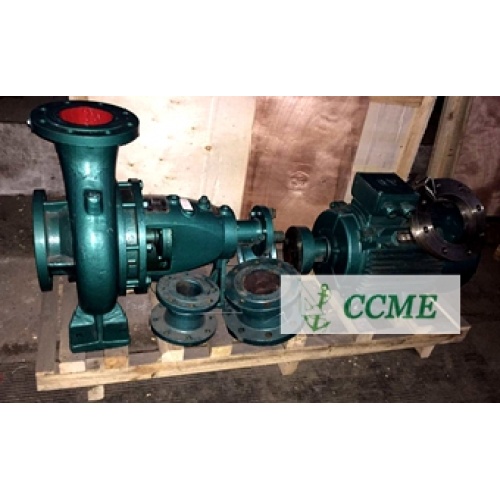

Marine gear pump marine Horizontal Single Suction Centrifugal Pump

$470.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	1000pcs per month

Product Description

The IHF (D) series centrifugal pump is designed according to international standards. The pumping housing is made of metal outing lined with fluoroplastics, and the impeller and pump cover are pressed into form with metal inserts wrapped by fluroplastic alloy, and the shaft seal is realized by mechanically sealing the advanced outer-carrying corrugated pipe. The stationary seal ring is made of 99.9% alumina ceramics. They are corrosion- and wear-resistant and airtight.

Horizontal Single Suction Centrifugal IHF Fluoroplastic Pump Model Significance

IHF 50-32-160 D

IH - International standard chemical industry centrifugal pump

F – The overflow part is fluorine plastic

50 - Inlet Diameter(mm)

32 - Outlet diameter(mm)

160 - Nominal diameter of the impeller(mm)

D – The short bracket structure code

Horizontal Single Suction Centrifugal IHF Fluoroplastic Pump Specifications

Model	Flow	Lift	Efficiency	NPSh	Inlet×Outlet	Speed	Motor Power	Weight
	m3/h	m	%	m	mm	r/min	kw	kg
IHF50-32-160(D)	7	33	35	3.2	50×32	2900	4	95
	*12.5	32	47
	15	30	47
IHF50-32-200(D)	7	51	28	3.2	50×32	2900	7.5	135
	*12.5	50	40
	15	49	48
IHF65-50-125(D)	15	22	46	3.5	65×50	2900	3	90
	*25	20	61
	35	16	67
IHF65-50-160(D)	15	33	45	3.5	65×50	2900	5.5	125
	*25	32	56
	35	30	65
IHF80-65-125(D)	35	22	52	4	80×65	2900	5.5	125
