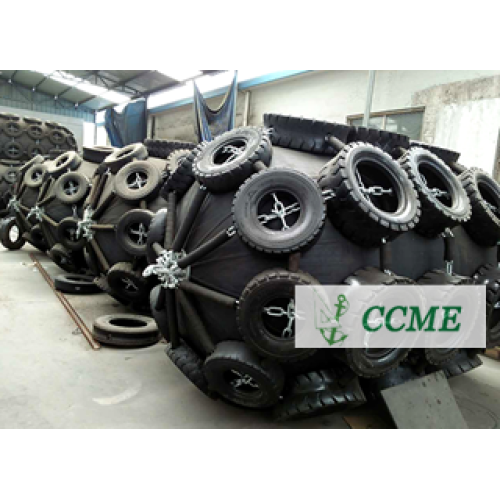

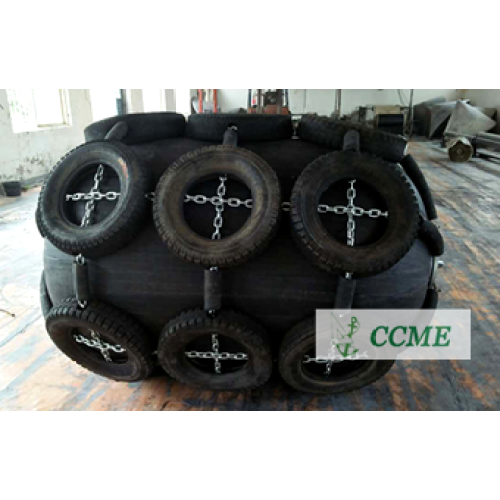

Marine yokohama pneumatic rubber fender

$1279.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Transportation:: Ocean

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	jiangsu
Productivity:	1000 per week
Certificate:	ccs ec
Transportation:	Ocean

Product Description

Pneumatic rubber fenders have a long and successful history of protecting vessels in mooring
operations.
They are ideal for permanent and semi-permanent port applications and for offshore ship-to-ship transfers.Tough and resilient,Qingdao Haozhiyue Marine System`s fenders are fast and easy to deploy, maintaining large clearances between the hull and the jetty or other vessel. This serves to minimise damage potential during mooring.
Critical properties of rubber fenders are energy absorption, hull pressure and reaction force. In both
cases, Haozhiyue Marine Systems products score very highly, with low reaction force and low hull
pressure. This means the fender absorbs significant energy, reducing the forces on both the vessel hull and jetty structures.
With the development of ship technology, fenders have evolved to suit newer vessel types such as ULCCs,LNG carriers, bulk carriers, FSOs and FPSOs. As a result, Haozhiyue Marine Systems manufactures a wide range of pneumatic fenders from the large 3.5 x 7 meter down to the 0.5 x 1.0 meter fenders.

Usage of the rubber fender

1.Pneumatic rubber fenders are quick and easy to deploy.

2.Available in many sizes to suit clearance requirements and different size of ships.

3.To protect the ships and docks.

4.Quick and easy to install.

Product No.	Spec. D*L(m)	Initial Inner Pressure 0.05MPa			Initial Inner Pressure 0.08MPa
Product No.	Spec. D*L(m)	Weight(Kg)	R(KN)	GEA(KJ)	Weight(Kg)	R(KN)	GEA(KJ)
BMMMERFPN-001	0.5*1.0	25	64	6	25	85	8
BMMMERFPN-002	0.6*0.1	32	74	8	32	98	11
BMMMERFPN-003	0.7*1.5	50	137	17	50	180	24
BMMMERFPN-004	1.0*1.5	80	182	32	80	239	45
BMMMERFPN-005	1.0*2.0	100	257	45	125	338	63
BMMMERFPN-006	1.2*2.0	120	297	63	165	390	88
BMMMERFPN-007	1.35*2.5	165	427	102	226	561	142
BMMMERFPN-008	1.5*3.0	315	579	153	370	761	214
BMMMERFPN-009	1.7*3.0	405	639	191	436	840	287
BMMMERFPN-010	2.0*3.5	590	875	308	632	1150	430
BMMMERFPN-011	2.5*4.0	1050	1381	663	1110	1815	925
BMMMERFPN-012	2.5*5.5	1333	2019	943	1410	2653	1317
BMMMERFPN-013	3.0*5.0	1880	2000	1050	2155	2709	1571
BMMMERFPN-014	3.0*6.0	2160	2488	1312	2470	3292	1888
...	...	...	...	...	...	...	...
BMMMERFPN-018	3.3*10.6	4403	5257	3067	5020	6907	4281
BMMMERFPN-019	4.5*9.0	6554	5747	4752	7470	7551	6633
BMMMERFPN-020	4.5*12.0	8739	7984	6473	9960	10490	9037
BMMMERFPN-021	5.5*10
