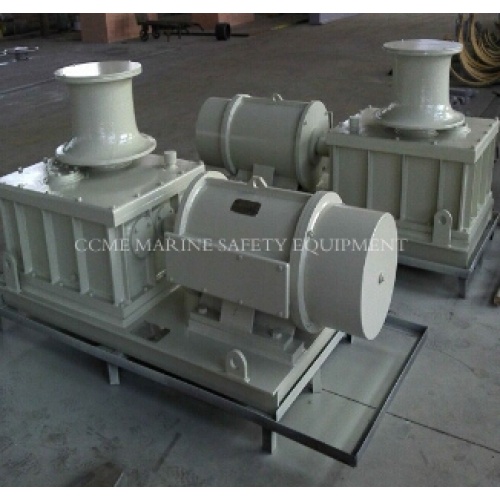

Marine electric winch capstan

Model

Pull Capacity

KN

Speed of rope

m/min

Rope Capacity

m

Rope Dia

mm

Motor

Power

KW

Dimension

mm

Weight
KG

JM1

10

15

80

Φ9

Y112M-6

2.2

740*690*490

270

JM1.6

16

16

115

Φ12.5

Y132M-6

5.5

940*900*570

500

JM2

20

16

100

Φ13

Y160M-6

7.5

940*900*570

550

JM3.2

32

9.5

150

Φ15.5

YZR160M-6

7.5

1430*1160*910

1100

JM5

50

9.5

190

Φ21.5

YZR160L-6

11

1620*1260*948

1800

JM8

80

8

250

Φ26

YZR180L-5

15

2180*1460*850

2900

Model

Pull Capacity

(KN)

Speed of rope

(m/min)

Rope Capacity

(m)

Rope Dia

(mm)

Motor

Power

(KW)

Dimension

(mm)

Weight

(KG)

JM10

100

8

200

Φ30

YZR200L-6

22

2280*1500*950

3800

JM12.5

125

10

300

Φ34

YZR225M-6

30

2880*2200*1550

5000

JM16

160

10

500

Φ37

YZR250M-8

37

3750*2400*1850

8800

JM20

200

10

600

Φ43

YZR280M-8

45

3950*2560*1950

9900

JM25

250

9

700

Φ48

YZR280M-8

55

4350*2800*2030

13500

JM32

320

9

700

Φ52

YZR315S-8

75

4500*2850*2100

20000

JM50

500

8

800

Φ60

YZR315M-8

90

4930*3050*2250

38000

JM65

650

10

2400

Φ64

LA8315-8AB

160

5900*4680*3200

46000
