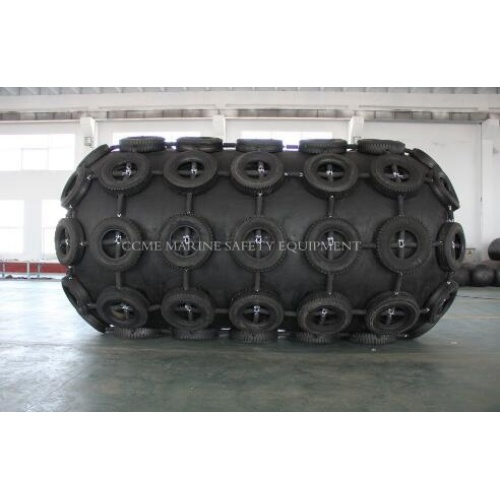

Floating pneumatic marine rubber fender

$1470.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

Floating yokohama fender (for ship use) uses compressed-air as medium to absorb the energy from impact. The sides of ships are softer when berthing, so the result of collision-avoiding is achieved.

All our fenders are frame work instead of hand-making, to have fenders with better quality and longer used time. Compared with traditional bumper-style rubber fender, it has the following features, absorbing greater impact, less reverse impact on the ships, easy installation, more elasticity, not being bent out of shape under pressure, less weigh and practical and economical.

Diameter	Length	Intital pressure(Po) is 0.05MPa			Intital pressure(Po) is 0.08MPa
Diameter	Length	Weight kg	Reaction force (KN)	GEA (KJ)	Weight kg	Reaction force (KN)	GEA (KJ)
300	500	10	23	1.3	10	30	1
300	600	15	27	1.5	15	36	2
500	800	25	60	6	25	80	7
500	1000	35	75	7.5	35	100	9
800	1200	180	144	22	180	191	28
800	1500	200	190	280	200	240	35
1000	1500	140	226	41	140	286	53
1000	2000	170	301	55	170	381	71
1200	2000	200	361	79	200	458	103
1200	2500	240	427	102	240	554	140
1500	2500	300	565	155	300	711	200
1500	3000	350	671	186	350	284	160
2000	3500	650	900	1050	650	1340	501
2000	6000	950	1800	660	950	229	859
2500	4000	1100	1510	688	1100	1900	889
2500	5500	1350	2076	946	1350	2610	1220
3000	5000	1700	2250	1250	1700	2860	1600
3000	6000	2000	2583	1485	2000	3292	1888
3300	4500	1800	2240	1350	1800	2820	1740
3300	6500	2250	3230	1950	2250	4070	2520
4500	7000	3250	5270	3180	3250	5980	5040
4500	9000	4950	6120	5050	4950	7960	6480
