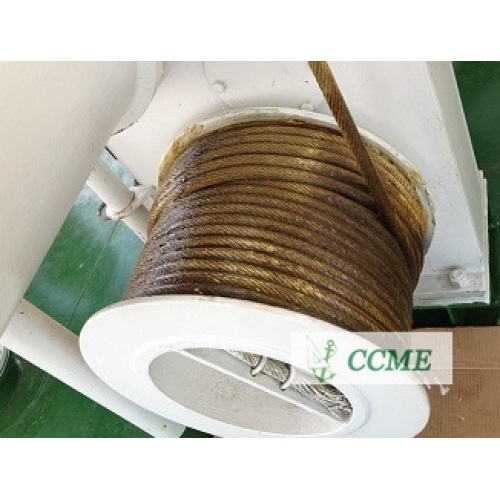

Galvanized and Ungalvanized Marine Steel Wire Rope

$589.00

≥1000 Meter

Min. Order:: 1000 Meter

Min. Order:: 1000 Meter

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

We can supply steel wire ropes of many specifications, both galvanized and ungalvanized.

Our products are widely used in tugboats, cargo net, floating wood, : various cable carriage, rope and belt conveyer, rope way drawing, slop winch, etc, we can guarantee you the best quality and the favorable price .If you have some interests and want to know more about our product, please feel free to contact me.

Specifications:
1. Construction: 1X7, 1X19, 6x7, 7X7, 6x19, 7X19, 6X37, 7X37, 8x19, 19X7 etc
2. Material: Carbon steel
3. Diameter: 01.5mm-100mm
4. Core: FC, IWR
5. Certification: ISO, SGS
6. T/S: 1570/1670/1770/1870/1960/2060
7. Application: Fencing/Hoisting/Drilling/Mining/Cableway/Marine/Construction
8. Package: Safety export wooden /plastic reel / As the requirement of customer
9. Delivery time: Around 25-30days after the order confirmation
10. Application : Fishing, Lifting, Marine Industry.coal Mine

Nominal	Approximate		(N/mm2) Nominal T/S
Diameter	Weight		1470		1570		1670		1770		1870
(mm)	(kg/100m)		(KN) Min B/L
	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR	FC	IWR
6	13.68	15	17.4	18.8	18.6	20.1	19.8	21.4	21	22.7	22.2	24
8	24.3	26.7	31	33.5	33.1	35.8	35.2	38.1	37.4	40.3	39.5	42.6
10	38	41.8	48.5	52.3	51.8	55.9	55.1	59.5	58.4	63.1	61.7	66.6
12	54.7	60.2	69.8	75.3	74.6	80.4	79.3	85.6	84.1	90.7	88.8	95.8
14	74.5	81.9	95	102	101	109	108	116	114	123	120	130
16	97.3	107	124	133	132	143	141	152	149	161	157	170
18	123	135	157	169	167	181	178	192	189	204	199	215
20	152	167	194	209	207	223	220	237	233	252	246	266
22	184	202	234	253	250	270	266	287	282	304	298	322
24	219	241	279	301	298	321	371	342	336	362	355	383
