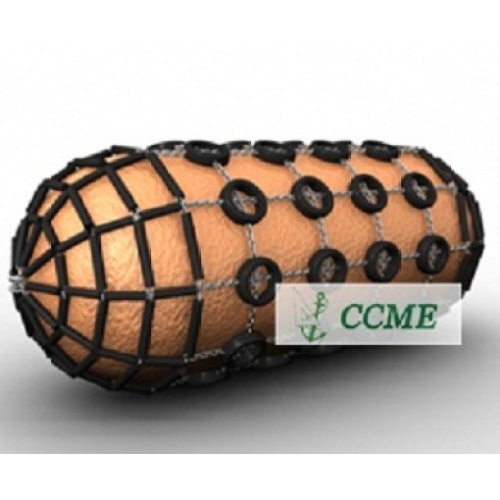

Marine pneumatic rubber fender for docks and ships

$1370.00

≥1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

1. In ports with extreme tidal variations
2. For ship-to-ship lightering operations
3. For all navy vessels due to low hull pressure and the advantage of a proportional increase of reaction force and energy absorption

The fenders can easily be deflated which allows simple and cost efficient relocation and re-commissioning in other locations.

Diameter	Length	Intital pressure(Po) is 0.05MPa			Intital pressure(Po) is 0.08MPa
Diameter	Length	Weight kg	Reaction force (KN)	GEA (KJ)	Weight kg	Reaction force (KN)	GEA (KJ)
300	500	10	23	1.3	10	30	1
300	600	15	27	1.5	15	36	2
500	800	25	60	6	25	80	7
500	1000	35	75	7.5	35	100	9
800	1200	180	144	22	180	191	28
800	1500	200	190	280	200	240	35
1000	1500	140	226	41	140	286	53
1000	2000	170	301	55	170	381	71
1200	2000	200	361	79	200	458	103
1200	2500	240	427	102	240	554	140
1500	2500	300	565	155	300	711	200
1500	3000	350	671	186	350	284	160
2000	3500	650	900	1050	650	1340	501
2000	6000	950	1800	660	950	229	859
2500	4000	1100	1510	688	1100	1900	889
2500	5500	1350	2076	946	1350	2610	1220
