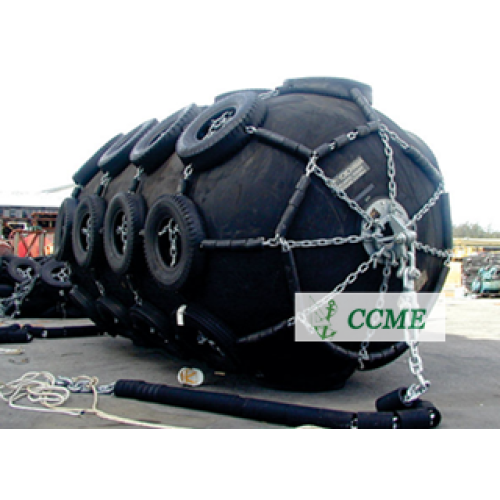

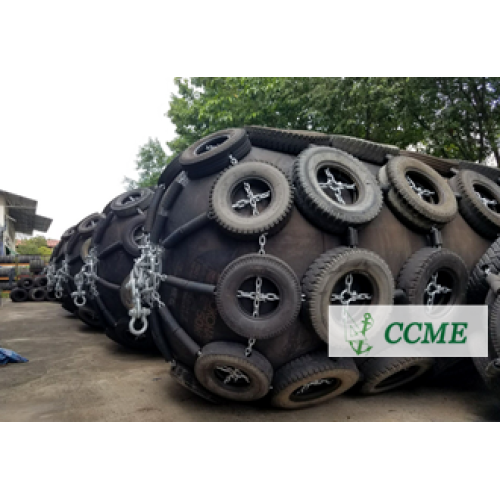

Marine dock pneumatic rubber fender
  • Marine dock pneumatic rubber fender
  • Marine dock pneumatic rubber fender
Marine dock pneumatic rubber fender
Marine dock pneumatic rubber fender

Marine dock pneumatic rubber fender

  • $680.00
    ≥1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Min. Order:
1 Piece/Pieces
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Product Description
Product Description

Thesedock fenders-dock pneumatic style has the followings feature:
1. High energy absorption and low reaction force and surface pressure.
2. No decline in the rate of energy absorption when obliquely compressed, under normal circumstances, and uniform surface pressure for any contact area.
3. Low reaction force of the dock fenders to prevent damage from repeated impacts against the hull of a ship, quay, jetty or a mooring rope.
4. Ability to float and thus rise and fall with the ebb and floe of tides and the deterioration of the rubber.
5. High standard of uniform quality in compression performance with no deterioration of the rubber.
6. This dock fenders is easy for installation.

Size Initial internal pressure Guaranteed energy absorption
GEA(kJ)
Reaction force at GEA deflection
R((kN))
D×L(m) (Kpa) Minimum value at deflection
60±5%
Tolerance ±10%
0.5×1.0 50 6 64
0.6×1.0 50 8 74
0.7×1.5 50 17 137
1.0×1.5 50 32 182
1.0×2.0 50 45 257
1.2×2.0 50 63 297
1.35×2.5 50 102 427
1.5×3.0 50 153 597
1.7×3.0 50 191 639
2.0×3.5 50 308 875
2.5×4.0 50 663 1381
2.5×5.5 50 943 2019
3.0×5.0 50 1210 2104
3.0×6.0 50 1485 2583
3.3×4.5 50 1175 1884
3.3×6.0 50 1675 2783
3.3×6.5 50 1814 3015
3.3×10.6 50 3067 5257
4.5×9.0 50 4752 5747
4.5×12.0 50 6473 7984
