Anti-aging Super Cone Marine Dock Rubber Fender
-
$380.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|

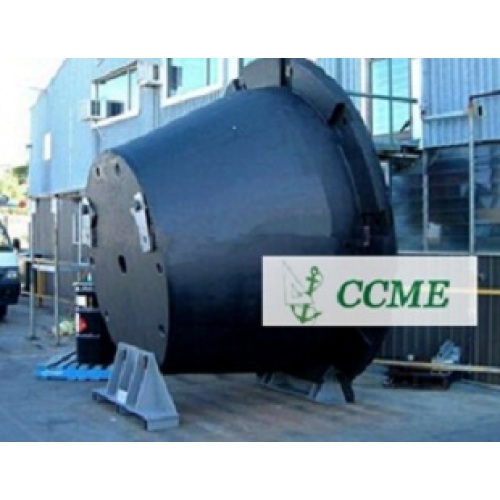

Cone type rubber fender is the 3rd generation of cell type rubber fender, the structure more reasonable, deflection can reach 70
%,the
equal specification fender energy absorb raise one more times ,long
life using .it can reduce the cost of the dock project. while vessel
angular berthing, the performance basically unchanged. front panel set
in the margin of fender , it can lower the surface pressure of the
vessel side board , the surface pressure can be controlled at below
200kn/m2 it applies for large vessel berthing uhmw-pe installed in front
of front panel , it can reduce the friction factor between vessel and
fender and lower the shear strength while vessel berthing , and raising
the fender using life. it applies for low reaction force .high energy
absorption dock and that using supper cell rubber fender all dock. the
style of installation variety. easily be installed.
Size |
H |
B |
C |
D |
E |
F |
G |
Weight |
mm |
(mm) |
(mm) |
(mm) |
(mm) |
#×Type |
#×Type |
Kg |
|
ZC600H |
600 |
900 |
810 |
510 |
390 |
6×M24 |
6×30 |
235 |
ZC700H |
700 |
1050 |
945 |
595 |
455 |
6×M30 |
6×38 |
350 |
ZC800H |
800 |
1200 |
1080 |
680 |
520 |
6×M35 |
6×44 |
540 |
ZC900H |
900 |
1350 |
1215 |
765 |
585 |
6×M36 |
6×44 |
765 |
ZC1000H |
1000 |
1500 |
1350 |
850 |
650 |
6×M42 |
6×50 |
1050 |
ZC1100H |
1100 |
1650 |
1485 |
935 |
715 |
6×M42 |
6×50 |
1400 |
ZC1150H |
1150 |
1725 |
1550 |
998 |
750 |
6×M42 |
6×50 |
1600 |
ZC1200H |
1200 |
1800 |
1620 |
1020 |
780 |
6×M42 |
6×50 |
1950 |
ZC1300H |
1300 |
1950 |
1755 |
1105 |
845 |
8×M48 |
8×56 |
2400 |
ZC1400H |
1400 |
2100 |
1890 |
1190 |
930 |
8×M48 |
8×60 |
3060 |
ZC1600H |
1600 |
2400 |
2158 |
1360 |
1040 |
8×M48 |
8×60 |
4600 |
ZC1800H |
1800 |
2700 |
2428 |
1528 |
1170 |
10×M56 |
10×74 |
6600 |
