Marine Anchor Spek Type Anchor Ship Anchor

Marine Anchor Spek Type Anchor Ship Anchor

$780.00

≥2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

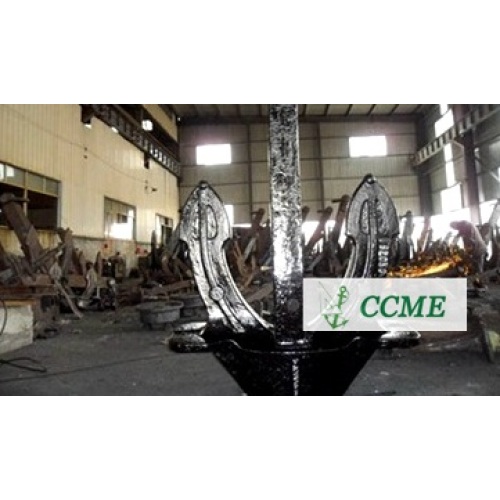

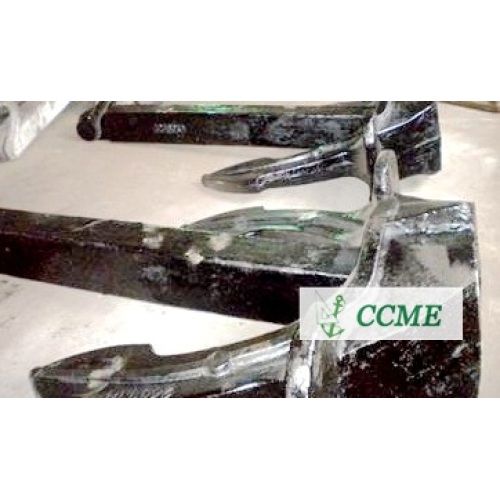

Speck Anchor is an improved anchor with lower point of gravity based on hall anchor, Anchor fluke grounded easily, more stability, when Anchor SPEK haul up, anchor fluke will turn over against the hull, which would not make damage to ship hull.
There 3 types of Speck Anchors: M type, SR type and GB711-95 type
Material: Casting Steel ZG200-400C
Weight: from 100KGS to 20000KGS
Finish: Black Painting]
Speck Anchor Certificate:ABS,LR,NK,DNV,GL,RIS,BV,KR, CCS
Speck Anchor Specification

Nominal Weight (KG)	Size(mm)
Nominal Weight (KG)	A	B	C	D	F
100	672	373	112	515	250
150	770	428	128	590	290
180	846	470	140	640	300
240	900	500	150	690	358
300	990	550	166	760	398
360	1065	600	180	828	431
420	1080	600	180	828	446
500	1170	650	196	900	446
570	1170	650	196	900	486
660	1260	700	210	962	486
780	1355	750	225	1032	547
900	1440	800	240	1100	573
1020	1530	850	252	1170	591
1140	1620	900	268	1240	620
1290	1710	900	268	1240	640
1440	1710	950	279	1300	671
1590	1710	950	279	1378	689
1740	1800	1000	300	1454	704
1920	1850	1050	312	1454	717
2100	1890	1050	312	1454	736
2280	2010	1050	312	1514	764
2460	2010	1100	324	1584	794
2640	2070	1150	352	1584	804
2850	2070	1150	352	1650	820
3060	2160	1200	360	1650	834
3300	2155	1200	360	1650	834
3540	2350	1200	360	1850	880
