Marine Wheel House Bolted Aluminum Marine Sliding Window

$367.00

≥2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Min. Order:: 2 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

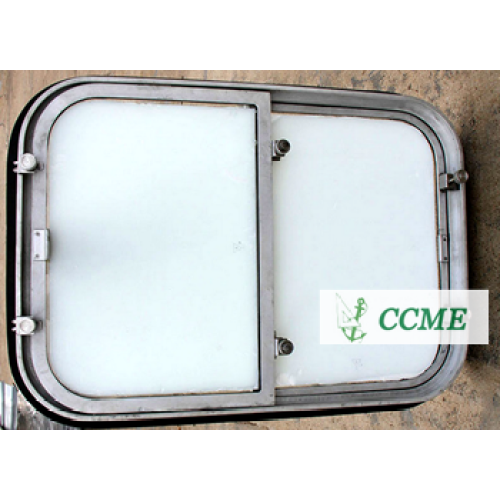

Ship Wheel House Bolted Aluminum Marine Sliding Window is a kind of ship window bolted in front of the wheel house, and superstructure above the freeboard deck of the vessels. Standard: CB/T3765-1996 Material: 1-Window Frame: Aluminum Alloy 2-Window Inner Frame: Aluminum Alloy 3-Window Outer Frame:Aluminum Alloy 4~9-Seal Strip: Rubber 10~12-Butterfly Clip: Carbon Steel or Stainless Steel 13-Window Box: Aluminum Alloy
Specification

Nominal Size	Clear Size	Window Frame Size		Opening Size	Glass Size		Max Pressure(Kpa)		Weight(kgs)
wxh	W'xh'xr'	w1xh1xr	w2xh2xr2	w3xh3xr3	thickness(t)	w4xh4xr4	t=8	t=6	t=8	t=6
740x500	355x500x50	825x588x94	890x650x125	840x600x100	6,8	373x518x58	45	26	20	18.9
830x560	400x560x50	918x648x94	980x710x125	930x660x100		418x578x58	36	21	21.9	20.7
930x630	450x630x100	1018x718x144	1080x780x175	1030x730x150		468x648x108	28	16	24.8	23.3
1030x710	500x710x100	1118x798x144	1180x860x175	1130x810x150		518x728x108	23	13	28	26.1
500x630	235x630x50	588x718x94	650x780x125	600x730x100		253x648x58	66	37	18.6	17.8
600x710	285x710x50	688x798x94	750x860x125	700x810x100		303x728x58	46	26	21.5	20.4
750x800	360x800x50	838x888x94	900x950x125	850x900x100		378x818x58	30	18	25.6	24
