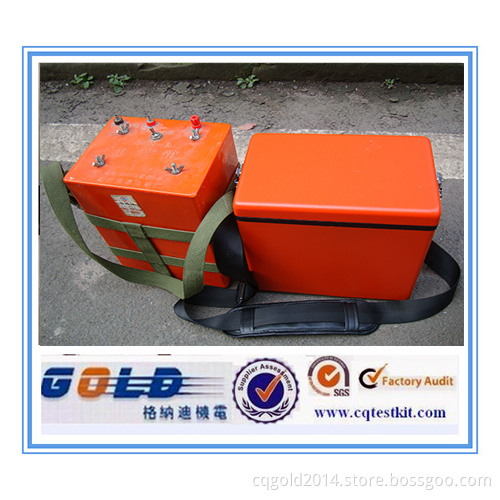

Large Area Gold Ore Detector DJF Large Power IP Meter

Specifications

Large Area Gold Ore Detector DJF Large Power IP Meter

Main Applications and Features

1.High Power Direct Current IP Measuring System includes: receiver, time domain IP transmitter, rectification power, simulator and dummy load. The system is a high-tech product which integrated with geophysics, electronics, computer technology, information processing technology, aiming to hydro-geological, mineral geology, engineering geology, energy, geology, environmental geology applications.

2.For large areas of metal mining, non-metallic mineral resources, geological survey and detailed survey work, search for groundwater and other hydrological and engineering geological exploration.

3.The system transmitter has two synchronization mode (domestic initiation): delay synchronization after pulse and high-precision quartz clock synchronization, which allows high efficiency of field production, also convenient and flexible.

System Composition
One 5/10/15KW High Power Direct Current IP Transmitter
One 5/10/15KW High Power Rectifier Power Source
One or more DJS-8B Direct Current IP Receiver
Electrodes AB, Power Lines AB, Measuring Electrodes, and other related accessories

DJF-2 5/10/15kw Transmitter

1.Auto time travel, with regular current storage function to facilitate future resistance calculation

2.Micro-computer controlled, large-screen LED to display output voltage and current, touch panel.

3.Provide with RS-232 serial interface to facilitate the transferring of current data

4.High voltage, high current, with over-voltage and over-current protection and circuit-opening attention

DJS-9 High Power IP Receiver

1.Rapid and Accurate: By adopting pulse delay synchronization mode and high-precision quartz clock synchronization mode, more accurate power-off delay is enabled , precise polarization measurement is realized , thus overcome the enlarging problem of apparent polarization error caused by large judgement error in power-off time for similar instruments.

2.Automation: SCM (Single Chip Micyoco) automatically execute self-potential compensation, gain adjustment, filtering and signal enhancement.

3.Time Parameter Recording: DJS-8B has auto travel time function, with measuring time stored together with measured results to facilitate the calculation of apparent resistivity.

4.Extra-large Storage: 15,000 groups of measured values can be stored, no loss even in case of power failure

5.Strong Anti-interference Capability: Adopt signal enhancement technology to suppress the interference a, thus highlight the effective signals.

6.RS-232C serial port can work with microcomputer (PC) on-line.

7.Fault Diagnosis: Fault location and damaged device can be accurately identified.
