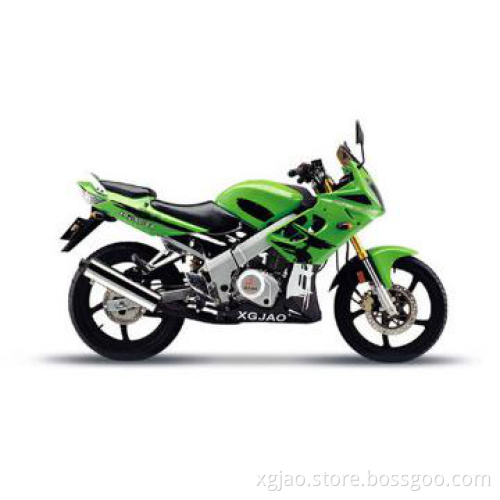

EEC-approval New Design Racing/ Sports Motorcycle,XGJ150-23

Main Parameter and Specifications for XGJ150-23
Main weight data
ITEM UNIT TECHNICAL DATA
Dry weight 113kg
Load weight 126kg
Rated Max. Loading 150kg
Main performances
ITEM UNIT Performance data
Exhaust pollutants Idling CO % ≤3.8 HC ppm ≤800
Operating mode HC g/km ≤5.5 CO ≤1.2 NOX ≤0.3
Max. Noise (dB) A ≤80 Brake distance (30km/h) m ≤7
Beam intensity of headlight cd ≥10000
Fuel consumption (45km/h) L/100km ≤2.2
Start performance s ≤15
Accelerating performance Accelerate when starting ≤16
Accelerate when speeding up ≤14
Max. Speed 95km/h
Slide distance m ≥200
Climbing capacity ( °) ≥18
Horn Grade dB (A) 93~112
Reliability km 6000km
Wear km 20000
Main structure type and technical parameter
Name of parts Item
Type/technical parameter
Engine
Engine model 162FMJ
Engine type Single-cylinder, 4-stroke, air-cooled
Start type By Electric/kick start
Ignition type C.D.I
Diameter of cylinder (mm) 62.0
Stroke of piston (mm) 49.5
Capacity of cylinder (ml) 149.4
Compression ratio 9.0:1
Rated power and relative rotate speed (kw/r/min) 8.5/9000
Max. power and relative rotate speed (kw/r/min) 10.0/9500
Max. torque and relative rotating speed (kw/r/min) 10.0/7500
Min. Speed when empty load (r/min) 1420 Min.
Fuel consumption rate (g/kw.h) ≤354
Fuel No. Above RQ-90
Lubrication oil No. 15W/40
Fuel provided Carburetor model PZ27
Carburetor type
Plunger type
Lubrication type Pressure splash
Fuel tank capacity 12 (L)
Lubrication oil capacity 1.1
Oil pump type Inside-outside rotator type
Transmission Clutch type Wet, multi-pieces Speed transmission type 5 speeds, normal mesh Transmission type Chain drive T
ransmission ratio 1st shaft 2.769 2nd shaft 1.882 3rd shaft 1.400 4th shaft 1.130 5th shaft 0.960 Initial Transmission ratio 4.055 Final stage transmission ratio 2.235
Wheel Wheel type Light alloy
Front wheel specification and pressure 200 kPa
Front wheel specification and pressure 225 kPa
Driving Front shock absorber type
Flexible pipe Rear shock absorber type
Single pipe
Frame type
Pipe sheet composition welding
Direction operation type
Handle bar turntable
Electric Magneto type
Magnetism-forever Ignition coil type
Automatic Spare plug model D8TC
Battery specification 12V-7Ah
Type and specification of headlight Halogen 12V18/18W
Turning light specification 12V/10W Brake light/rear light 12V21/5W
