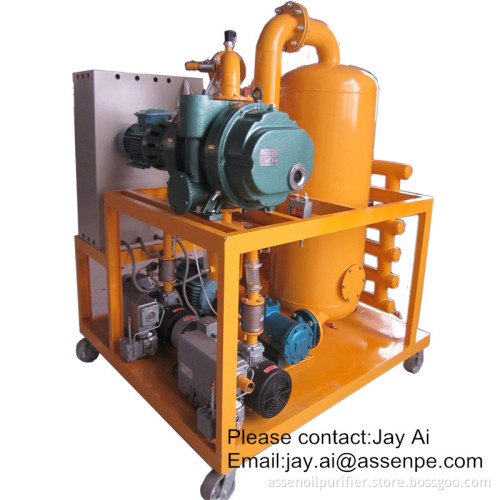

Fully Automatical type insulation oil purification system plant
- Payment Type:
- T/T, L/C, D/A, D/P, Western Union
- Incoterm:
- EXW
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 12 Days
- Transportation:
- Ocean, Land, Air
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Chongqing,China |
|---|---|
| Productivity: | 100 sets per month |
| Supply Ability: | 100 Sets per month |
| Payment Type: | T/T,L/C,D/A,D/P,Western Union |
| Incoterm: | EXW |
| Certificate: | CE ISO |
| Transportation: | Ocean,Land,Air |
Application:
ZYD series vacuum insulation oil purification system is mainly used to extend the lifetime of oils used in transformers, circuit breakers, mutual inductor, voltage regulators and switch gear, or to inject the insulating oil into the transformers. Equipped with regenerators, ASSEN insulation oil purification equipments can improve the effect of de-acid, de-color and remove dielectric and acid more effectively. The value of breakdown voltage will increase from 15KV to 75KV. The performance and lifetime of insulating oil will improve and extend awfully after purification and regeneration.
Scope of our Supply:
All types with different functions, with various spare parts can be supplied according to Customer`s requirements.
Performance:
In a single pass through the purifier at a full flow rate:
Water Removal: From 50 ppm down to less than 5 ppm in a single pass & down to 3 ppm after two passes. (According to the PPM Tester)
Gas Removal: From fully saturated with air (10% to 12% by volume) down to less than 0.1% by volume.
Particulate Matter Removal: 98% of particles over 0.5mm or over 1 mm or over 5mm at customers preference.
Dielectric Strength: Improve dielectric strength up to 75-80KV for New oil.
