GQ-60 Engineering drilling rig

Get Latest Price

Payment Type:: T/T, L/C, Western Union

Incoterm:: FOB

Min. Order:: 1 Set/Sets

Min. Order:: 1 Set/Sets

Delivery Time:: 15 Days

Transportation:: Ocean, Land, Air

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Productivity:	100 pcs
Supply Ability:	1000 pcs per month
Payment Type:	T/T,L/C,Western Union
Incoterm:	FOB
Certificate:	ISO9001
Transportation:	Ocean,Land,Air

Product Description

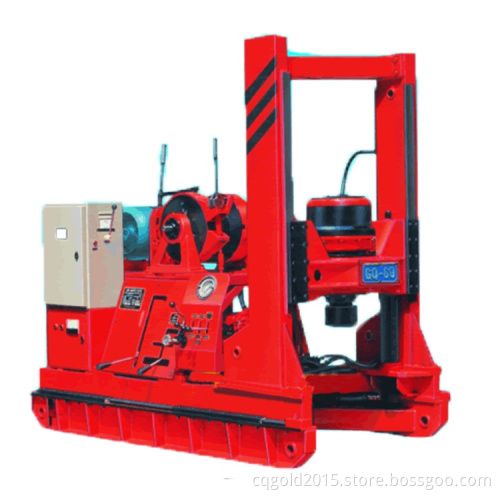

Engineering drilling rig GQ-60 This drilling machine is manufactured according to the requirement of foundation engineering, suitable for drilling medium mini-type grouting hole of building, skyscraper, dam and harbor and drilling water well.

Features:

Mast structure, top-drive head can move down or up along with, strength and rigidity
Large torque, compact structure, easy to move
Top-drive head is equipped with hydraulic chuck, drilling Efficiently.
Reasonable arrangement, easy to operate, smooth and quick.

Specification:

hole dia (mm)		600
drilling capacity (m)		30
topdrive head speeds(r/min)	forward	40;118;218;300
	reverse	62
max torque (N.m)		4500
topdrive head max pull force (KN)		58.86
topdrive head max pulsh force (KN)		44.15
top-drive head stroke (mm)		700
hoist lift capacity with singlerope (KN)		30
retracting stroke (mm)		580
oil pump		CB32 oil gear pump
power unit	electric motor for rotary	Y180L-4 22KW
	electric motor for hoist	Y160M-4 11KW
innerdia if spindle (mm)		2200×1200×2050
drill body weight(kg)		2500
