2016 Hot Selling Borehole Camera GYGD-III Borehole Inspection Camera

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

1... What is Application of borehole Camera?

To inspection the water leakage of the well ,
To imaging the blockage of the well
To help the repair of the well
Provide broadcast quality video of the underwater world, back to the surface from up to within 1000m below,
This camera can be viewed in real time or recorded for later viewing

2. What is borehole camera including?

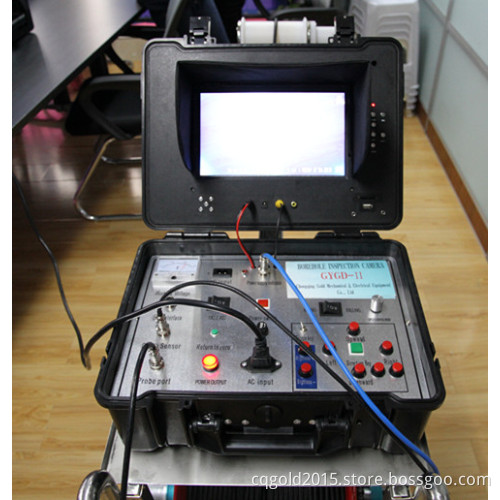

Borehole camera monitor, borehole camera probe, motor/ manual winch, cable, pulley, DVR

3. What is Feature of borehole Camera?

4. What is Specs of borehole Camera?

No.	Configuration	Dimension	Specification
1	Camera probe	Diameter: 50/80mm Length: 470mm	1. Camera lens are manufactured with high-quality resins. 2. High-quality steel body with solid structure, not easy to be damaged. 3. Maximum bearable pressure: 20Mpa (can reach the depth of 2000m under water) 4. 6-12 LED lamps are available
2	Camera		1. Sony inducer 1/3`` CCD 2. HD 850 TVL image definition 3. Waterproof 4. Panoramic lens camera
3	Specialized cable	Length: 0-2000m (optional)	1. With steel wire 2. Max bearable tension: 260kg
4	Control unit		1. 220V/380V/12V optional voltage mode 2. Aeronautic aluminium case
5	Downhold pulley		Logging depth counter equiped
6	Logging winch		Manual & electric winch available
7	HD DVR		SD card
